KR-Graph2: Normal Knock Sensor Signal at WOT

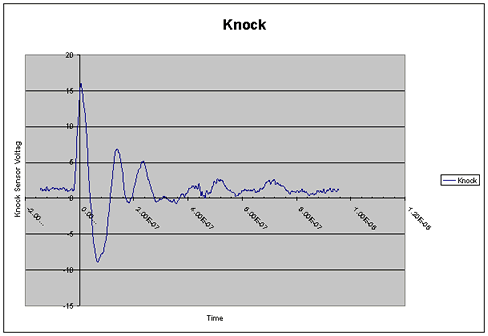

The graph below shows what the knock sensor signal looks like at WOT with no KR. Notice again the scaling on the Y axis, this time it is VERY high. I was, of course, careful to ensure that there would be no knock during this run. This is simply engine noise at high RPM.
