Aeroforce Interceptor Scan Gauge
BE SURE TO READ THE APPLICATION CHART AT THE BOTTOM OF THIS PAGE BEFORE CHOOSING YOUR GAUGE.
Displays the following information:
- Intake Air Temperature (post Intercooler)
- Ambient Air Temperature (pre Intercooler)
- Engine Coolant Temperature
- Exhaust Gas Temperature (PCM Calculated)
- Transmission Temp. (auto trans)
- Manifold Pressure (vacuum/boost) displayed in PSI
- Fuel Temperature
- Battery Voltage
- Battery Temp
- Injector Pulse Width in msec.
- Injector Duty Cycle (%)
- Air Flow Rate into engine
- Long Term Fuel Trim
- Short Term Fuel Trim
- O2 Sensor Voltage
- Barometric Pressure
- Ignition Advance
- Base Spark
- PCM Spark Adjust
- Fuel Status (open/closed loop)
- Wastegate Solenoid Duty Cycle (%)
- Knock Retard
- Knock Sensor Raw Voltage
- Throttle Position Percentage
- Throttle Position Sensor Raw Volts
- Calculated Net Horsepower
- Engine Load
- Transmission Slip
- Current Transmission Gear
- Torque Delivered to Transmission
- Torque Converter lockup status
- Brake pressure
- Brake Booster Travel
- Steering Angle
- Non-driven Wheel Speed
- Lateral G's
- Fuel economy (instantaneous and average)
- P-ratio - pressure ratio MAP/Barometer
- 2 user configurable analog inputs

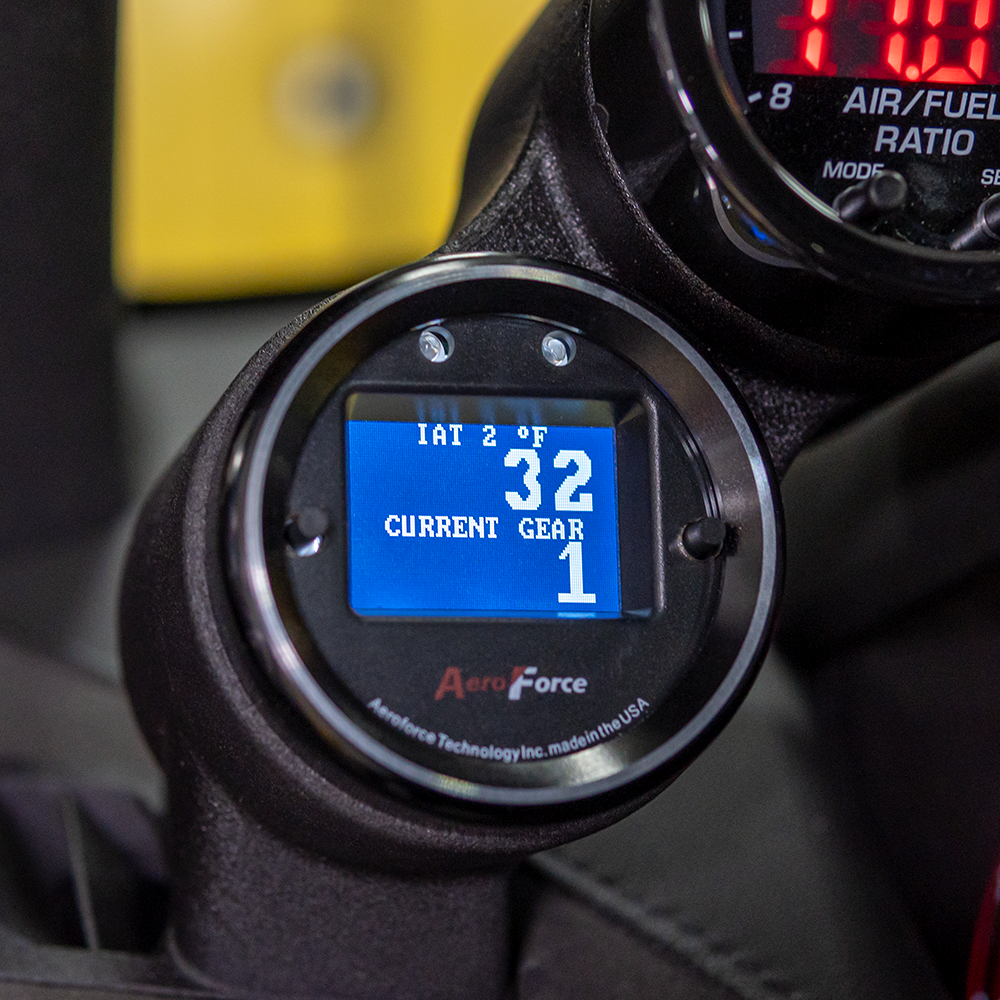

This amazingly powerful 2 1/16" (52mm) gauge provides real time information allowing you to diagnose problems, measure performance, fuel economy, and read and clear trouble codes. It does it all and looks great too! Simply plug into your diagnostic port to display just about anything you'd want to know about your vehicle.
- Dozens of critical parameters available for every supported vehicle. Can view 2 to 8 at a time in large, easy to read numbers without touching the gauge.
- Record and play back data on gauge, no need for laptop or other device
- Accepts 2 additional sensors without requiring any additional equipment unlike other copycat products. Allows you to read such things as air/fuel ratio, EGT temps, etc. that are not on the vehicle from the factory.
- High intensity warning lights can be programmed to indicate unsafe vehicle operating conditions.
- Integrated shift lights.
- Available in numerous configurations allowing you to match or customize your dash!

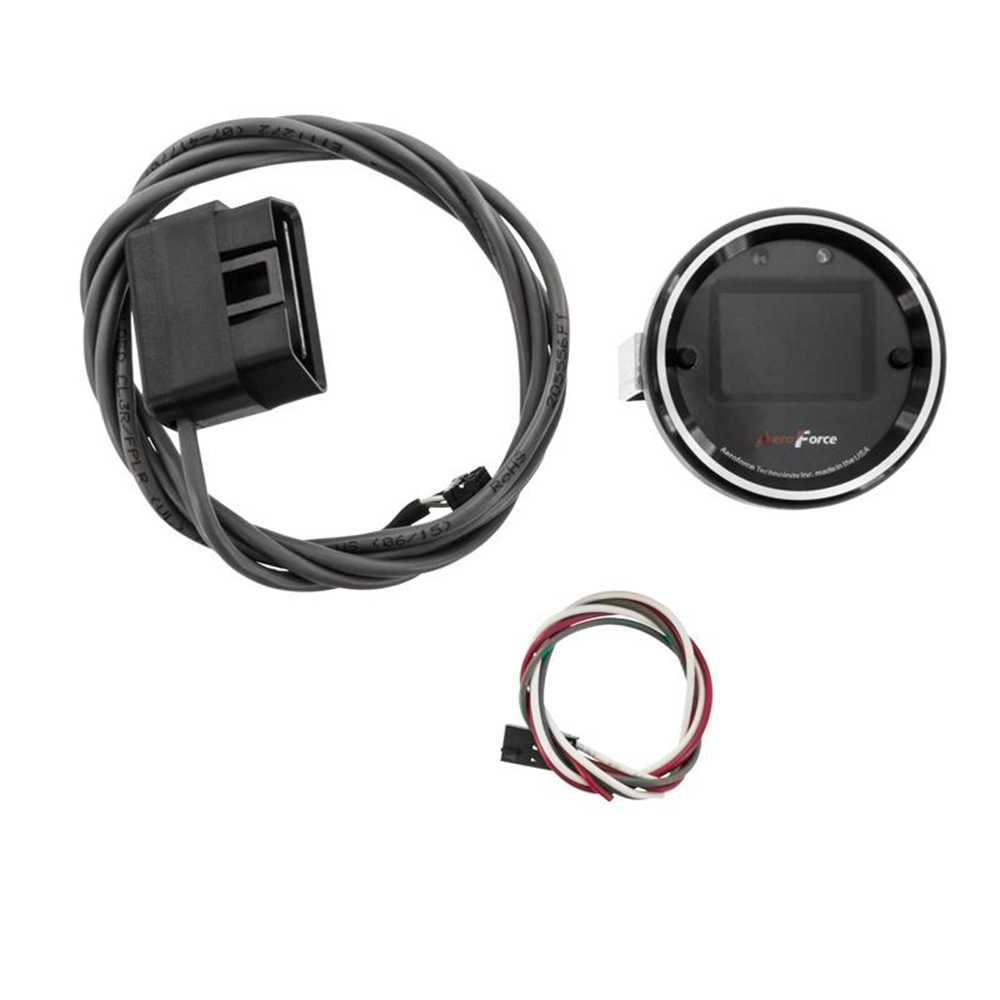

Included: Black and white faces, and a black outer trim ring with a polished lip. Custom faces/bezels can be ordered. For example "GTP", "Cruze", "Sonic", "SS" faces, silver bezels, etc.
Dual interceptor Option: Two Interceptors can be purchased with a special splitter cable that allows both gauges to operate simultaneously.
We only carry the most common gauges so if you need something to ship out immediately, feel free to email us to have us check stock.
For troubleshooting or warranty information please email firstname.lastname@example.org
Note 8.12.21 - Due to industry shortages Aeroforce may no longer include the aluminum mounting bracket. We apologize for the inconvenience. However, often times the bracket is not needed, and only works in certain mounting applications. Most of our gauge pods have a nice snug secure fit without the bracket.
- '12+ ATS (CN)
- '16+ Camaro (CN)
- '97-02 Camaro 3.8L (PT)
- '97-'07 Grand Prix (PT)
- 2007+ Grand Prix v8 (CN)
- 2008+ Grand Prix (CN)
- '05-'07 Cobalt 2.0L (PT)
- 2008+ Cobalt 2.0L (CN)
- 2005+ Cobalt 2.2L & 2.4L (CN)
- '04-'07 Saturn Ion Redline (PT)
- '97-'04 Regal (PT)
- '96-'05 Monte Carlo (PT)
- 2006+ Monte Carlo (CN)
- '96-'05 Impala (PT)
- '96-'05 Bonneville 3.8L (PT)
- 2005+ Bonneville v8 (CN)
- 2011+ Cruze (CN)
- 2012+ Sonic (CN)
- 1996+ Grand Am (PT)
- 2007-2010 Saturn Sky (CN)
- 2007-2009 Pontiac Solstice (CN)
