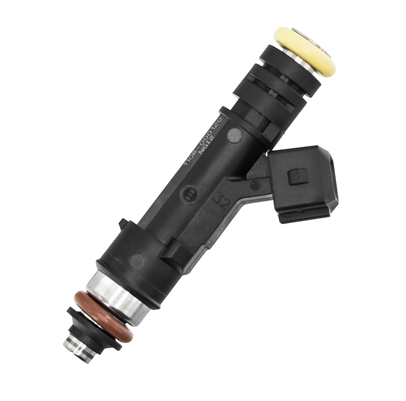

160# Injectors - Set of 8

0280158827-8 $599.99
Regular price $599.99

These 160lb injectors us use an EV1 injector plug and are compatible with all fuels.



Coil Resistance: 9.1 Ohms / High Impedance
Dead Time: 0.45ms at 14 volts
Static Flow Rate @ 43.5 PSI ( 300kPa ) w/Gas: 1700 cc/min = 160 lb/hr
Static Flow Rate @ 50 PSI ( 350kPa ) w/Gas: 1875 cc/min = 180 lb/hr
Static Flow Rate @ 58 PSI ( 400kPa ) w/Gas: 2000 cc/min = 195 lb/hr

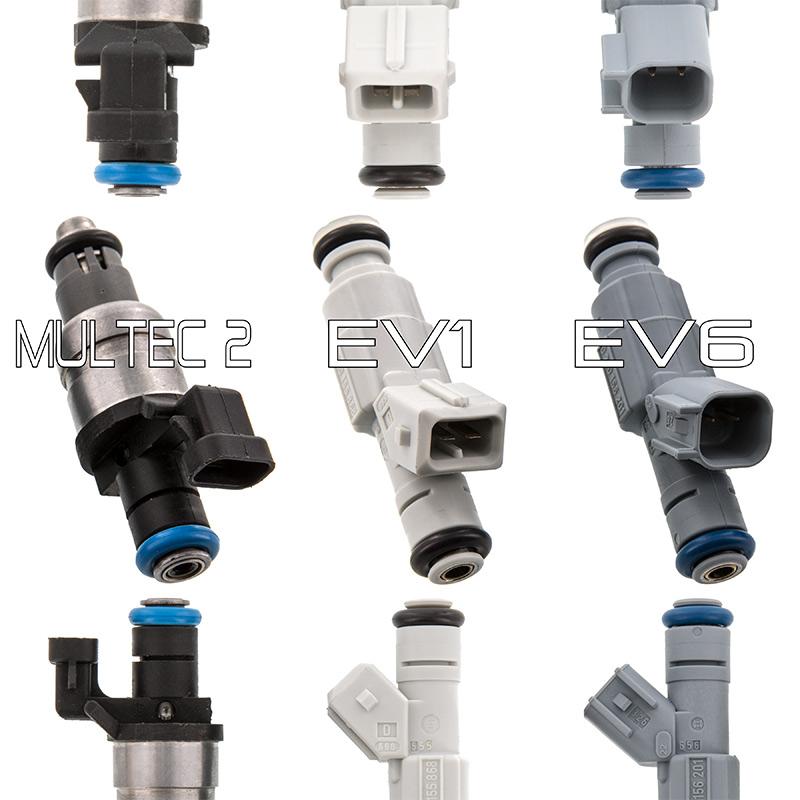

Connector: Bosch EV1
Injector Length: O-Ring to O-Ring: 62 mm
Injector Overall Length: 74 mm
Injector Body Diameter: 16mm
O-Ring: 14.5mm Viton



Sold in sets of 8

*The large size of these injectors mean even at minimum duty cycle a lot of fuel will be released. We recommend a boost referenced fuel system to lower pressure at idle. This will keep the car from running too rich at idle. It is also recommended to use E85 or an ethanol based fuel where more fuel volume is required.

These 160lb injectors us use an EV1 injector plug and are compatible with all fuels.



Coil Resistance: 9.1 Ohms / High Impedance
Dead Time: 0.45ms at 14 volts
Static Flow Rate @ 43.5 PSI ( 300kPa ) w/Gas: 1700 cc/min = 160 lb/hr
Static Flow Rate @ 50 PSI ( 350kPa ) w/Gas: 1875 cc/min = 180 lb/hr
Static Flow Rate @ 58 PSI ( 400kPa ) w/Gas: 2000 cc/min = 195 lb/hr
Connector: Bosch EV1
Injector Length: O-Ring to O-Ring: 62 mm
Injector Overall Length: 74 mm
Injector Body Diameter: 16mm
O-Ring: 14.5mm Viton



Sold in sets of 8

*The large size of these injectors mean even at minimum duty cycle a lot of fuel will be released. We recommend a boost referenced fuel system to lower pressure at idle. This will keep the car from running too rich at idle. It is also recommended to use E85 or an ethanol based fuel where more fuel volume is required.
