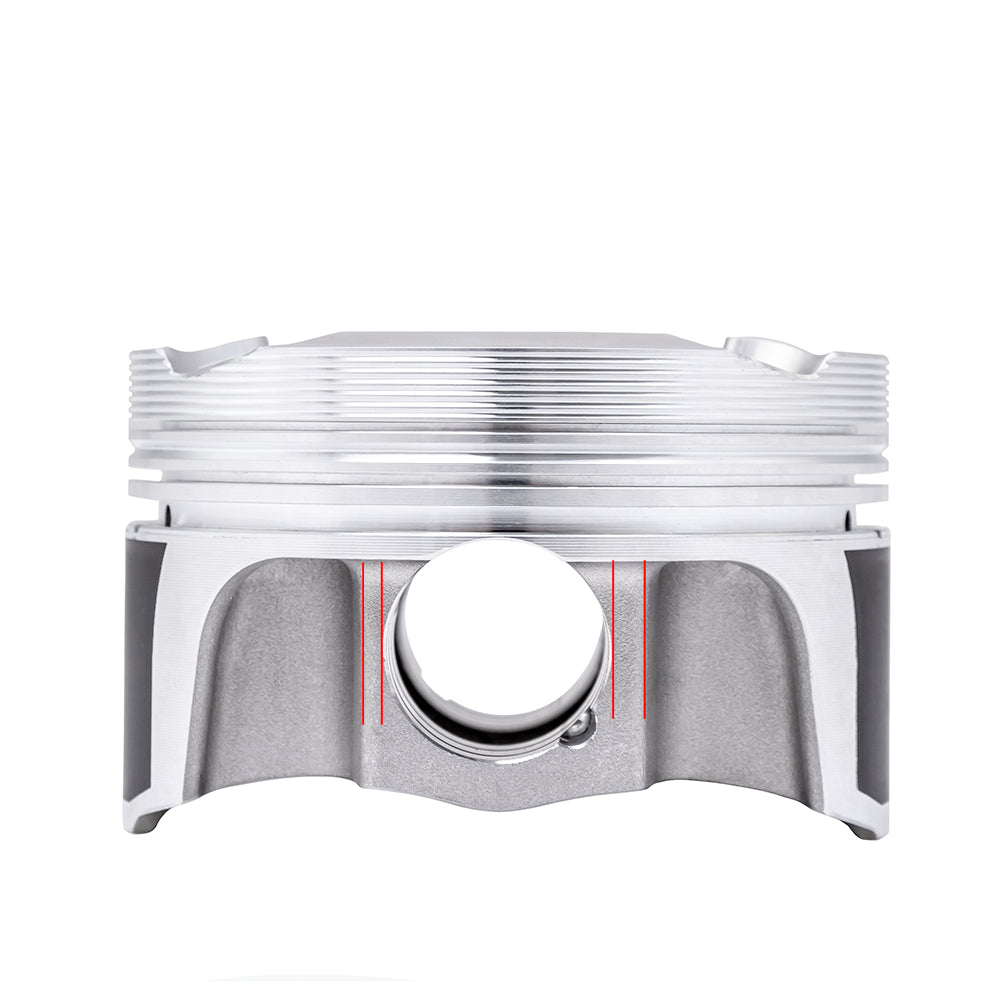

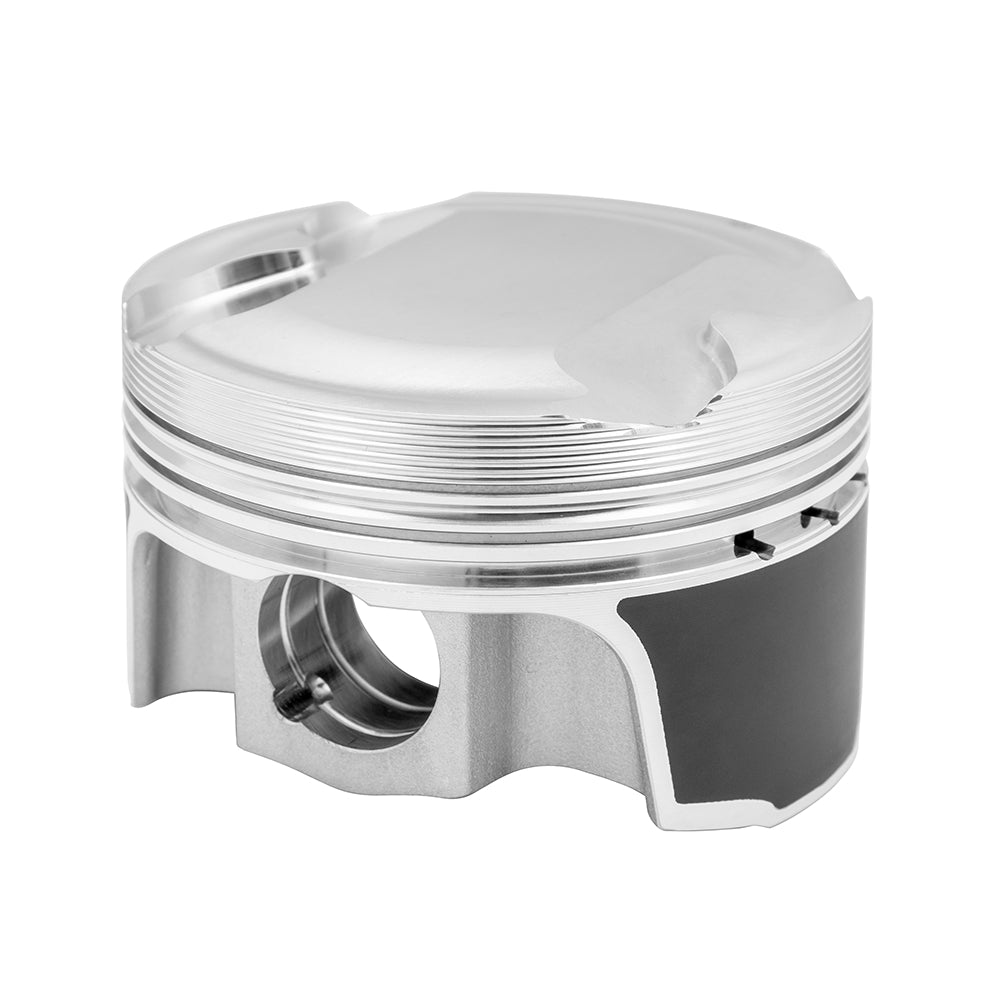

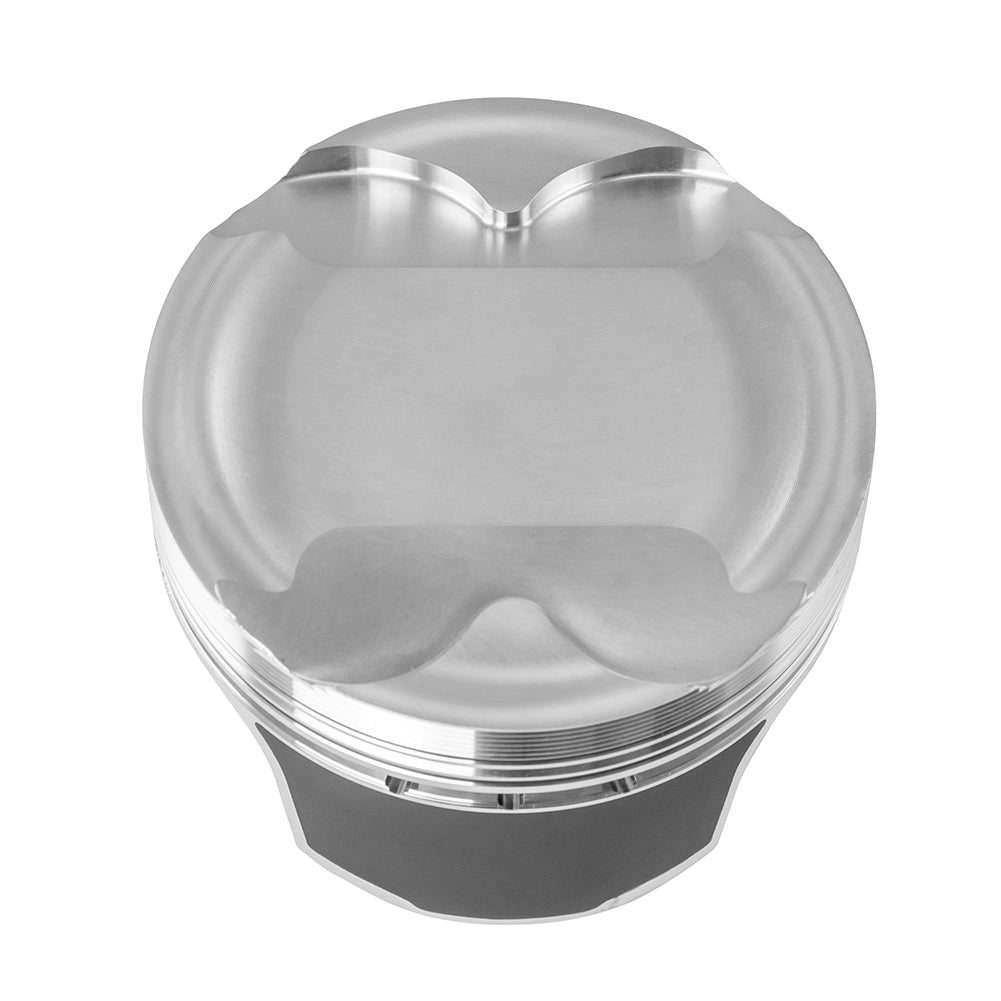

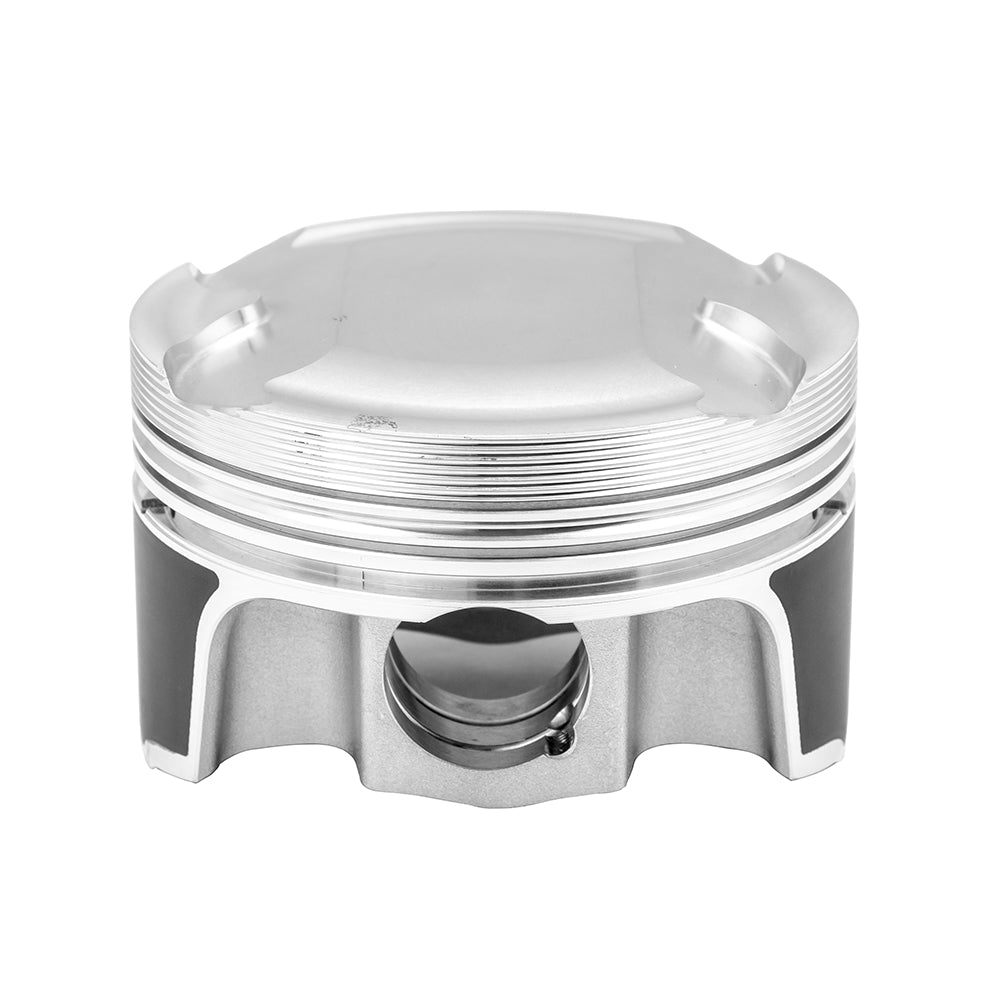

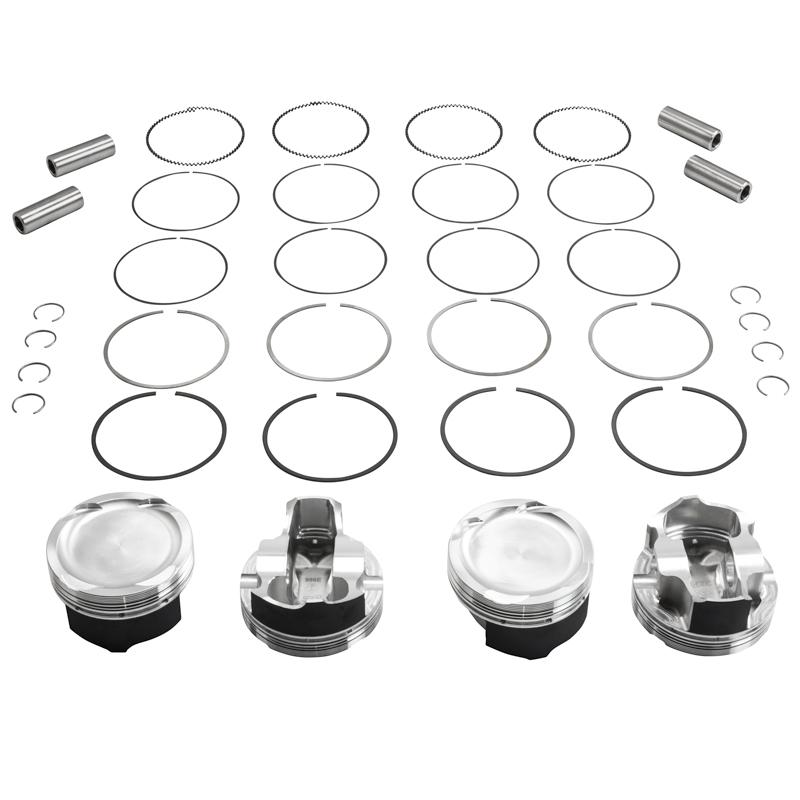

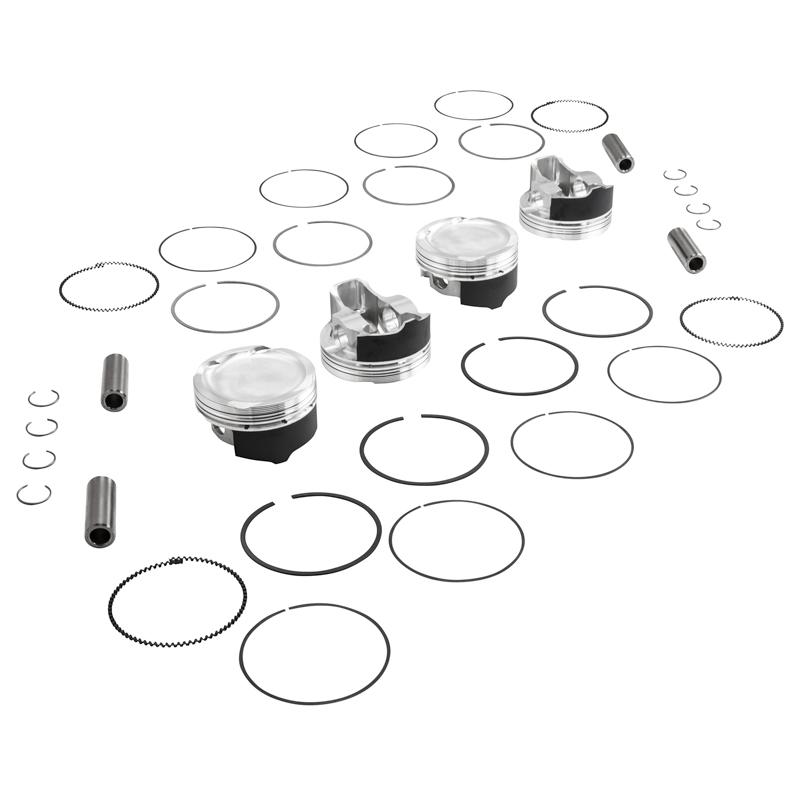

Forged & Coated Pistons for LSJ/LE5

SKU:3386DM085

$774.99 Sale price

Engine
Bore Size
Compression
Regular price $774.99
  • Coated skirts
  • Tool steel nitrided rings with a napier second ring
  • Upgraded forging capable of living at 1000+hp, the technology of this forging comes from existing Honda designs that make 1000+hp and survive!
  • Offset pin .030 so you can run a tighter piston to wall clearance. For a "quieter" piston. (install with offset towards exhaust side)
  • This LSJ piston design was developed in conjunction w/ GM for a secret project car.
  • Made from a 2618 forging

We offer 3 options at this time:

  • 2.0L/86mm in 9.5:1 compression which is stock.
  • 2.4L/88mm in 10.4:1 compression which is stock.
  • 2.1L/88mm in 9.6:1 compression (requires 2.0 rods/crank)

LSJ Note: These forged pistons will not work with the stock rectangular LSJ oil squirters. They must be replaced with the LNF/LDK tube type Gen 2 oil squirters. And, they need to be bent about .060" to the side to clear the JE pistons.

Make sure to check oil squirter to piston clearance.

You are viewing a product listed on the following platform:

Ecotec
Slingshot
  • Coated skirts
  • Tool steel nitrided rings with a napier second ring
  • Upgraded forging capable of living at 1000+hp, the technology of this forging comes from existing Honda designs that make 1000+hp and survive!
  • Offset pin .030 so you can run a tighter piston to wall clearance. For a "quieter" piston. (install with offset towards exhaust side)
  • This LSJ piston design was developed in conjunction w/ GM for a secret project car.
  • Made from a 2618 forging

We offer 3 options at this time:

  • 2.0L/86mm in 9.5:1 compression which is stock.
  • 2.4L/88mm in 10.4:1 compression which is stock.
  • 2.1L/88mm in 9.6:1 compression (requires 2.0 rods/crank)

LSJ Note: These forged pistons will not work with the stock rectangular LSJ oil squirters. They must be replaced with the LNF/LDK tube type Gen 2 oil squirters. And, they need to be bent about .060" to the side to clear the JE pistons.

Make sure to check oil squirter to piston clearance.

Customer Reviews

4.8 Based on 4 Reviews
5 ★
75%
3
4 ★
25%
1
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review Ask a Question
  • Reviews
  • Questions

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

BB
01/29/2019
Ben B.

easy to install, sealed right up

turbo le5 in my buggy made 457 crank, no issues with these pistons, they are je's

GG
10/24/2017
Guest G.

Forged/Coated pistons

Awesome piston!, pay close attention to your piston to wall gap/ ring gap! These pistons have an offset wristpin with no real description/instruction on how the piston should face installed since their is no indication on the piston anywhere. Called JEpistons direct and asked what the arrow on the underside ment and all they could say was the arrow with the letters RA on the underside of the piston is referenced for their knowledge for the words RIGHT AWAY meaning looking at the crank the arrow should face right. Have had no issues yet with my build installing this way. Also a diagram on their site depicts this. ZZP said it doesn't matter which way theu face but if you ask me if you have an offset wrist pin it deff does. Buy again? yes

GG
05/05/2016
Guest G.

Very good pieces an great

Very good pieces an great quality

AE
10/14/2015
Arvid E.

Great product and even better service

I recently had an incident leading to a complete engine rebuild. ZZP's staff was very patient and walked me through the installation steps and shared their extensive knowledge around the Ecotec LSJ engine.
