BE SURE TO READ THE APPLICATION CHART AT THE BOTTOM OF THIS PAGE BEFORE CHOOSING YOUR GAUGE!

Displays the following information:

RPM
MPH
Intake Air Temperature (post Intercooler)
Ambient Air Temperature (pre Intercooler)
Engine Coolant Temperature
Exhaust Gas Temperature (PCM Calculated)
Transmission Temp. (auto trans)
Manifold Pressure (vacuum/boost) displayed in PSI
Fuel Temperature
Battery Voltage
Battery Temp
Injector Pulse Width in msec.
Injector Duty Cycle (%)
Air Flow Rate into engine
Long Term Fuel Trim
Short Term Fuel Trim
O2 Sensor Voltage
Barometric Pressure
Ignition Advance
Base Spark
PCM Spark Adjust
Fuel Status (open/closed loop)
Wastegate Solenoid Duty Cycle (%)
Knock Retard
Knock Sensor Raw Voltage
Throttle Position Percentage
Throttle Position Sensor Raw Volts
Calculated Net Horsepower
Engine Load
Transmission Slip
Current Transmission Gear
Torque Delivered to Transmission
Torque Converter lockup status
Brake pressure
Brake Booster Travel
Steering Angle
Non-driven Wheel Speed
Lateral G's
Yaw
Fuel economy (instantaneous and average)
P-ratio - pressure ratio MAP/Barometer
2 user configurable analog inputs

This amazingly powerful 2 1/16" (52mm) gauge provides real time information allowing you to diagnose problems, measure performance, fuel economy, and read and clear trouble codes. It does it all and looks great too! Simply plug into your diagnostic port to display just about anything you'd want to know about your vehicle.

-Dozens of critical parameters available for every supported vehicle. Can view 2 to 8 at a time in large, easy to read numbers without touching the gauge.

-Record and play back data on gauge, no need for laptop or other device

-Accepts 2 additional sensors without requiring any additional equipment unlike other copycat products. Allows you to read such things as air/fuel ratio, EGT temps, etc. that are not on the vehicle from the factory.

-High intensity warning lights can be programmed to indicate unsafe vehicle operating conditions.

-Integrated shift lights.

-Available in numerous configurations allowing you to match or customize your dash!

Included: Black and white faces, and a black outer trim ring with a polished lip. Custom faces/bezels can be ordered. For example "GTP", "Cruze", "Sonic", "SS" faces, silver bezels, etc.

Dual interceptor Option: Two Interceptors can be purchased with a special splitter cable that allows both gauges to operate simultaneously.

We only carry the most common gauges so if you need something to ship out immediately, feel free to email us to have us check stock.

For troubleshooting or warranty information please email service@aeroforcetech.com .

APPLICATIONS:

'12+ ATS (CN)
'16+ Camaro (CN)
'97-02 Camaro 3.8L (PT)
'97-'07 Grand Prix (PT)
2007+ Grand Prix v8 (CN)
2008+ Grand Prix (CN)
'05-'07 Cobalt 2.0L (PT)
2008+ Cobalt 2.0L (CN)
2005+ Cobalt 2.2L & 2.4L (CN)
'04-'07 Saturn Redline (PT)
'97-'04 Regal (PT)
'96-'05 Monte Carlo (PT)
2006+ Monte Carlo (CN)
'96-'05 Impala (PT)
'96-'05 Bonneville 3.8L (PT)
2005+ Bonneville v8 (CN)
2011+ Cruze (CN)
2012+ Sonic (CN)
1996+ Grand Am (PT)

Full Application guide:
http://www.aeroforcetech.com/files/Aeroforce_application_guide_basic.xls

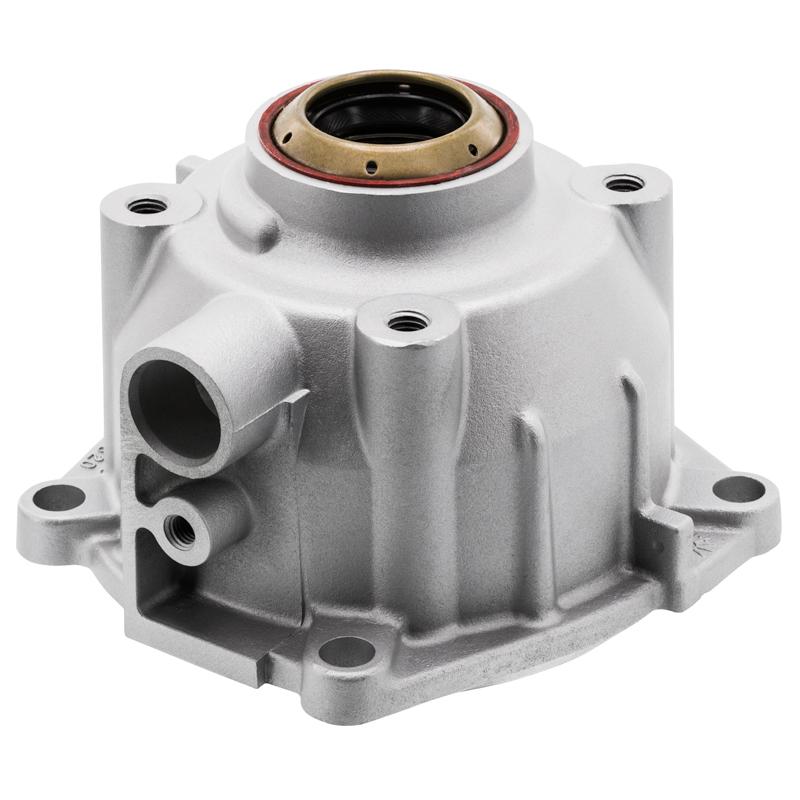

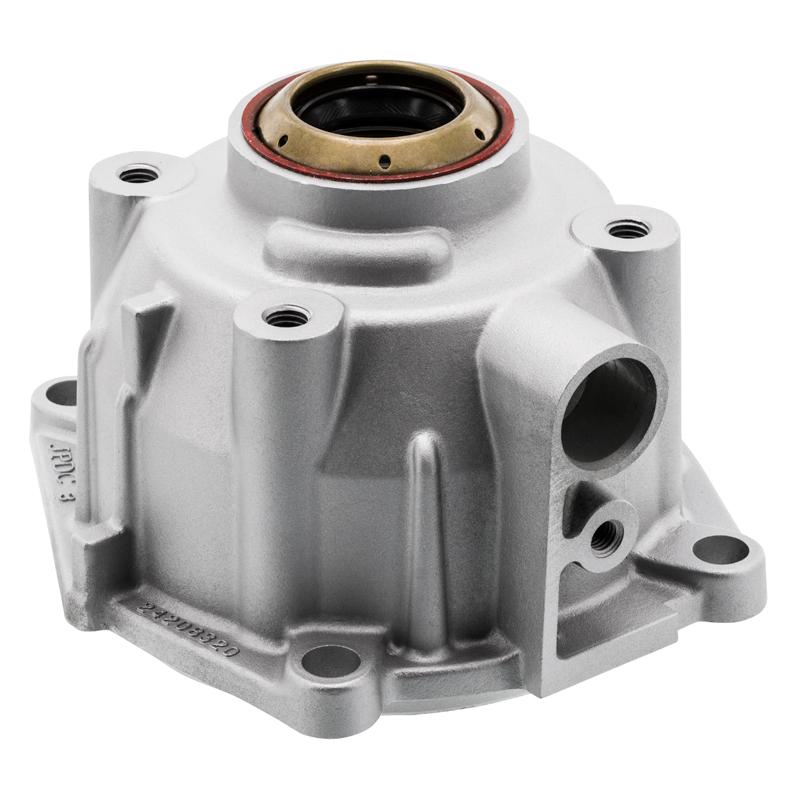

HD Diff Cover
