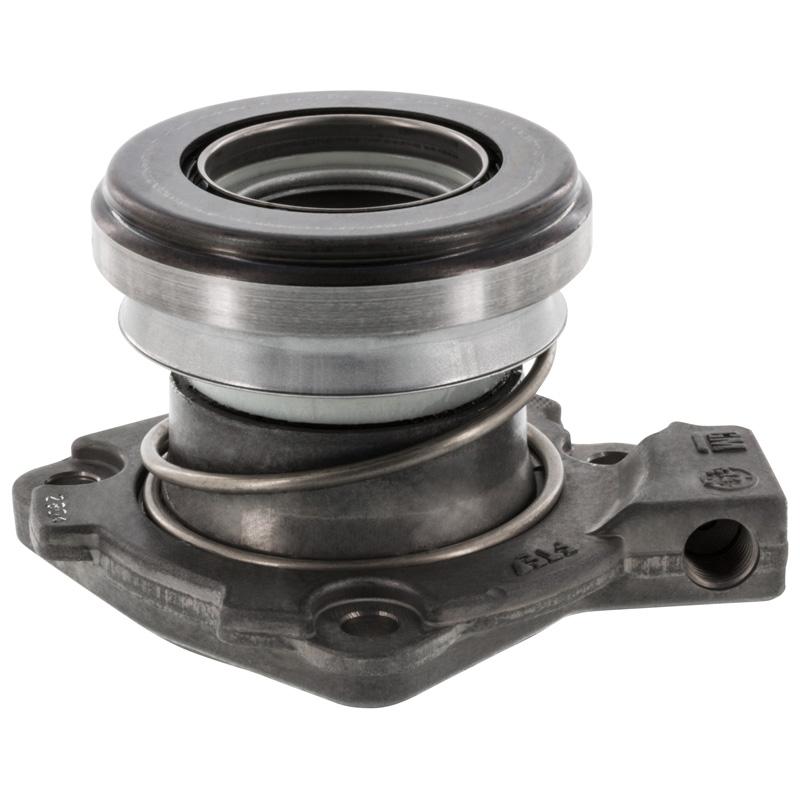

LSJ Upgraded Throwout Bearing

Transmission & Drivetrain - LSJ Upgraded Throwout Bearing
Transmission & Drivetrain - LSJ Upgraded Throwout Bearing

The factory LSJ throwout bearing bleeds off pressure when you press in the clutch. This upgraded throwout bearing will not bleed off pressure resulting in more accurate shifting, less grinding of the gears, quicker shifts, longer trans life. This is an upgrade that every LSJ car should have, aftermarket clutch or stock.

This is a brand new OEM dealership throw out bearing being sold with no warranty. If your clutch causes the T.O.B. (throw out bearing) to overextend it will ruin this part, so verify your pressure plates install height before installation.

This is an OEM LNF throw out bearing.

OEM Install instructions:

Tools needed:

  • J-35555 Metal Mityvac
  • J-42485 Power Steering Bleeder Adapter

1. Verify that all the lines and fittings are dry and secure.
2. Clean the dirt and grease from the reservoir cap in order to ensure that no foreign substances enter the system.
3. Remove the reservoir cap.
4. Fill the reservoir to the proper level with the required fluid.
Some manual transmission equipped vehicles have a combined brake and clutch fluid reservoir.
5. Attach the J-43485 power steering bleeder adapter to the J-35555 Metal Mityvac, or equivalent.
6. Place and hold the adapter on the reservoir filler neck to ensure a tight fit. In some cases, the adapter will fit into the reservoir opening.
7. Apply a vacuum of 51-68 kPa (15-20hg) and remove the adapter.
8. Refill the reservoir to the proper level.
9. Repeat steps 6 and 7
10. If needed, refill the reservoir and continue to pull a vacuum until no more bubbles can be seen in the reservoir or until the fluid level no longer drops.
11. Pump the clutch pedal until firm (to refill actuator cylinder).
12. Add additional fluid if needed.
13. Test drive the vehicle to ensure proper operation. Warning: car will move if started in 1st gear upon initial start up. Start car in neutral first time after installation.




Transmission & Drivetrain - LSJ Upgraded Throwout Bearing
Transmission & Drivetrain - LSJ Upgraded Throwout Bearing
Customer Reviews
4.9 Based on 35 Reviews
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
  • everything
  • brand
  • shifting
  • size
  • feel
  • bearing
  • spacer
  • noise
  • problems
  • ones
DK
09/05/2021
Dylan K.
United States
Everything I've gotten from zzp has been top notch

Zzp is the best, and only place to get parts for redlines in 2021, you guys have the best costumer service as well. Great company

ZK
06/25/2021
Zak K.
100% Recommended over Stock Green TOB

Higher quality, better clutch pedal feel, longer life, better shifting and less noise over factory green TOB. I only run the upgraded throwout bearing over the stock green ones. I have had nothing but problems with the factory green throwout with rattling after spirited driving and random grinding in winter conditions even though it was bled, spaced, and installed correctly. After I started using the upgraded TOB those issues have never happened again in 5 months of daily and spirited driving.

HS
04/04/2021
Harold S.
United States United States
Sweetness

Do not use any other brand and stick with oem. I had a side by side and almost everything is different from where the fingers contact the bearing to the size. Used the spacer for my set up and was good to go.

ND
04/02/2021
Nick D.
United States United States
Perfect

The product arrived on time and all there

RL
03/10/2021
Raymond L.
United States United States
Excellent price

When I was getting the parts together to change my clutch I looked around at comparable parts and all of them where more expensive in stores or online when shipped. This part was a great price even with the cost of shipping and shipping was fast too. The shop that did my clutch replacement was happy to see oem parts too.
