Option B for Dual Pass IC

SKU:ZZ-OPTBK

$95.99 Sale price

Regular price $95.99

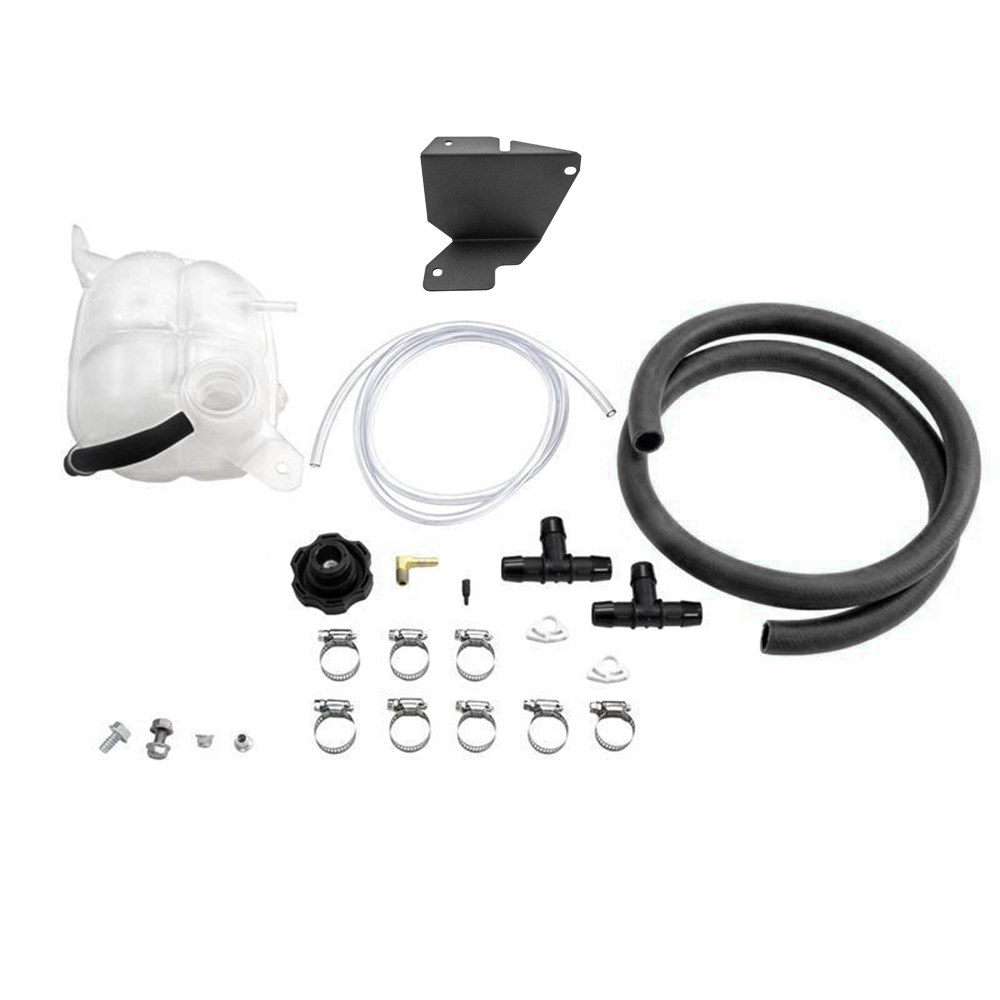

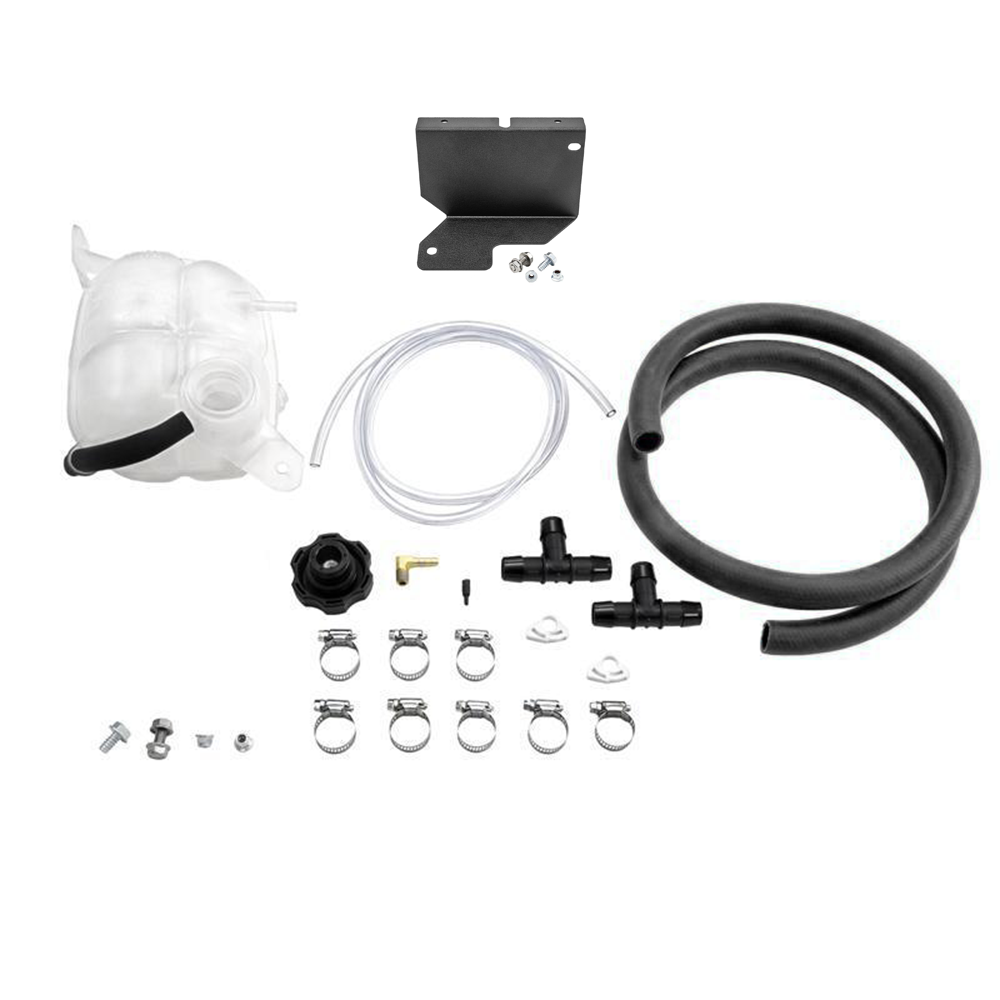

Comes as a complete kit with everything needed to install on your car minus the bracket, because the bracket only fits the Cobalt. This kit will make it easier to bleed the air from your intercooler system. The point is that the small line will always have coolant flowing out of it and feeding the Option B's overflow bottle, and when air comes out of the line it stays in the top of the bottle and air-free coolant drains out from the bottom of the bottle back to the IC pump and heat exchanger(s).




Diagram

GM Instructions for Dual Pass and Option B

Option B Bracket (for Cobalt) sold separately.

You are viewing a product listed on the following platform:

Ecotec



Comes as a complete kit with everything needed to install on your car minus the bracket, because the bracket only fits the Cobalt. This kit will make it easier to bleed the air from your intercooler system. The point is that the small line will always have coolant flowing out of it and feeding the Option B's overflow bottle, and when air comes out of the line it stays in the top of the bottle and air-free coolant drains out from the bottom of the bottle back to the IC pump and heat exchanger(s).




Diagram

GM Instructions for Dual Pass and Option B

Option B Bracket (for Cobalt) sold separately.

Customer Reviews

4.6 Based on 35 Reviews
5 ★
71%
25
4 ★
17%
6
3 ★
11%
4
2 ★
0%
0
1 ★
0%
0
Write a Review Ask a Question
  • Reviews
  • Questions

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

II
02/22/2018
Iw I.

needs new and improved instructions

This is an important kit to have - and the parts and pieces are all there. Added documentation should indicate how this is supposed to work with any design/engineering guidelines and restrictions. Knowing the following would have sped up the install for myself significantly: 1) The set up does not - and I repeat does NOT have to gravity feed the dual pass tee (despite what some youtube videos say). When all closed up and connected up, pressure in the tank from the bleed line, will push coolant over any high spots in the hose line to the dual-pass tee. 2) The hose may be placed thru the forward upper engine bay wiring tie-rail cavity to avoid clearance issues with the supercharger pulley/belt. 3) Placing a hose disconnect access point along the wiring tie-rail is very advantageous to place enough coolant in the system as an initial prime for the intercooler pump. 4) Once the system is primed with coolant, re-connected as a closed system, and pump is turned on (pump turns on with ignition to run with zzp pcm tune) - the system will bleed out air quickly (30 minutes for my setup) into the tank. After system is turned off - keep adding coolant to tank as level goes down. Don't let the tank go empty. 5) Oh yeah ... don't forget the restrictor - and place the restrictor pointy-end 1st into the hose. 6) The bleed valve will spit out a bubbly mix of fluid and air. 7) Placing the bleed port on the intercooler HE works fine.

I
02/22/2018
Iw

needs new and improved instructions

This is an important kit to have - and the parts and pieces are all there. Added documentation should indicate how this is supposed to work with any design/engineering guidelines and restrictions. Knowing the following would have sped up the install for myself significantly: 1) The set up does not - and I repeat does NOT have to gravity feed the dual pass tee (despite what some youtube videos say). When all closed up and connected up, pressure in the tank from the bleed line, will push coolant over any high spots in the hose line to the dual-pass tee. 2) The hose may be placed thru the forward upper engine bay wiring tie-rail cavity to avoid clearance issues with the supercharger pulley/belt. 3) Placing a hose disconnect access point along the wiring tie-rail is very advantageous to place enough coolant in the system as an initial prime for the intercooler pump. 4) Once the system is primed with coolant, re-connected as a closed system, and pump is turned on (pump turns on with ignition to run with zzp pcm tune) - the system will bleed out air quickly (30 minutes for my setup) into the tank. After system is turned off - keep adding coolant to tank as level goes down. Don't let the tank go empty. 5) Oh yeah ... don't forget the restrictor - and place the restrictor pointy-end 1st into the hose. 6) The bleed valve will spit out a bubbly mix of fluid and air. 7) Placing the bleed port on the intercooler HE works fine.

JO
02/14/2018
Jaime O.

Best parts place

Easy install helped .y car tremendously

JO
02/14/2018
Jaime O.

Best parts place

Easy install helped .y car tremendously

GG
09/19/2017
Guest G.

Option b

Fast shipping excellent Quálity and attn by kyle D
