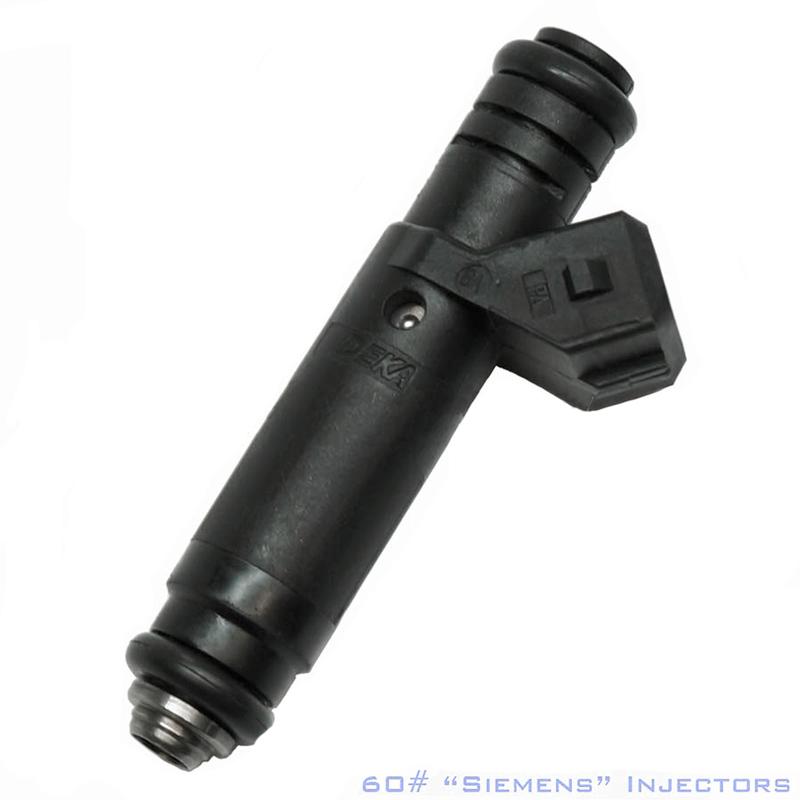

Siemens 60# Injectors - Set of 8

SKU: 108191-8

$317.99 Sale price

Injector Model
Regular price $317.99

Supports up to 350WHP supercharged or 400WHP turbo. They work with gas or E85, but we recommend 80's when using E85.

All ZZP purchased injectors come with dielectric grease and are packaged in a reusable plastic case to store your factory injectors safely.

Sold in sets of 8.

Specifications:

    • Coil Resistance: 12.5 Ohms / High Impedance / High-Z
    • Static Flow Rate @ 43.5PSI ( 300kPa ) w/Gas: 60 lb/hr = 630 cc/min = 453 g/min
    • Static Flow Rate @ 87PSI ( 600kPa ) w/Gas: 85.7 lb/hr = 900 cc/min = 648 g/min
    • Gain: 0.11ms/mg
    • Offset: 0.055ms
    • Turn on time @ 14VDC: 1.14ms
    • Turn off time: 0.85ms @ 600KPa
    • Series: DEKA 4 ( DEKA IV )
    • Orifice Type: Multi-orifice
    • Spray Pattern: 30 Degree Spray Cone
    • Factory fitted with Viton upper and lower o-rings

You are viewing a product listed on the following platform:

LSx

Supports up to 350WHP supercharged or 400WHP turbo. They work with gas or E85, but we recommend 80's when using E85.

All ZZP purchased injectors come with dielectric grease and are packaged in a reusable plastic case to store your factory injectors safely.

Sold in sets of 8.

Specifications:

    • Coil Resistance: 12.5 Ohms / High Impedance / High-Z
    • Static Flow Rate @ 43.5PSI ( 300kPa ) w/Gas: 60 lb/hr = 630 cc/min = 453 g/min
    • Static Flow Rate @ 87PSI ( 600kPa ) w/Gas: 85.7 lb/hr = 900 cc/min = 648 g/min
    • Gain: 0.11ms/mg
    • Offset: 0.055ms
    • Turn on time @ 14VDC: 1.14ms
    • Turn off time: 0.85ms @ 600KPa
    • Series: DEKA 4 ( DEKA IV )
    • Orifice Type: Multi-orifice
    • Spray Pattern: 30 Degree Spray Cone
    • Factory fitted with Viton upper and lower o-rings
