Siemens Deka 60# Injectors - Set of 6 - 3800
Slim line flow matched and balanced 60 pound injectors are for high HP applications where an aftermarket power adder is being used. These are good for 600HP on gas. They are high impedence injectors so they are plug and play for your 3800 car. The slim design saves 276 grams total over 42# Lucas injectors! Injectors of this size require PCM programming on most applications.
This is a great injector for E85 conversions and will make up to 375WHP using E85.

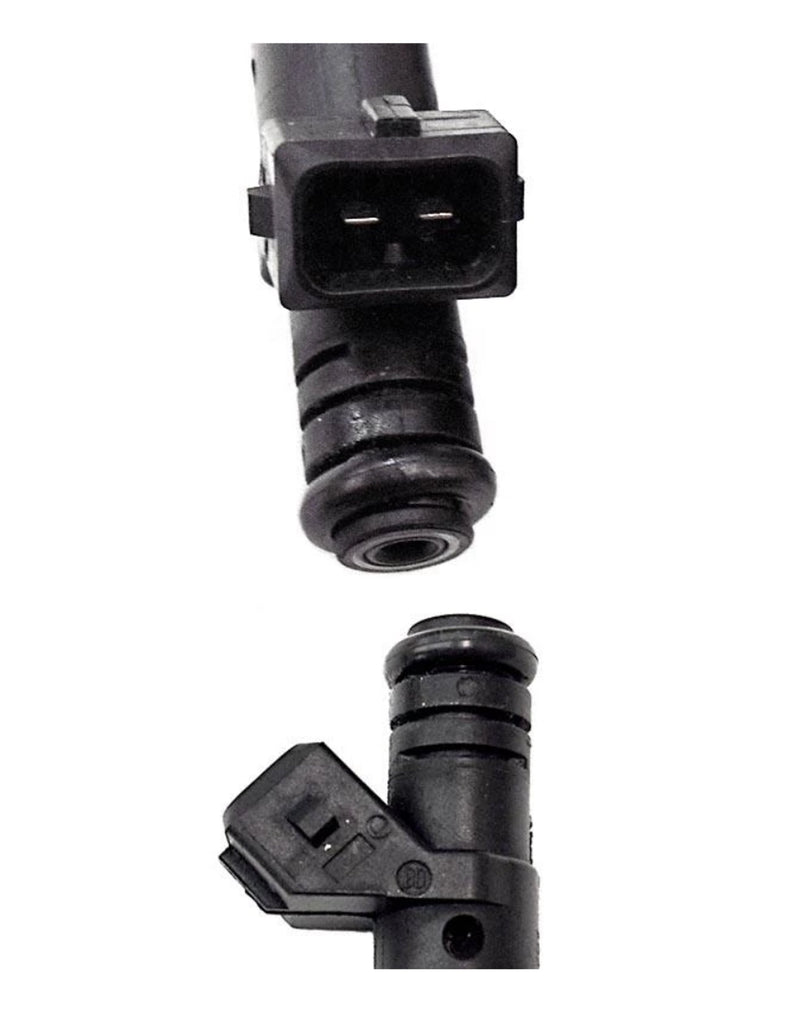

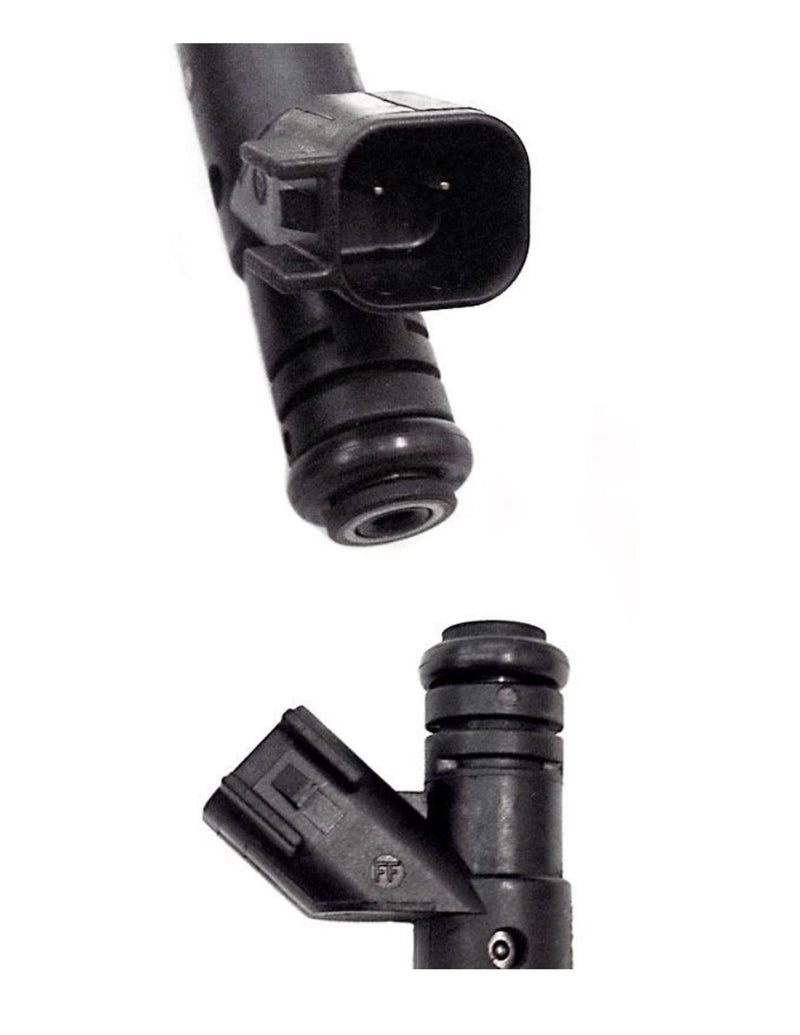

2001+ NA cars require injector connectors or adaptors. L67 cars will chose EV1 connectors, and L32 cars will chose the EV6 connectors.
2001+ NA cars require injector connectors or adaptors. L67 cars will chose EV1 connectors, and L32 cars will chose the EV6 connectors.
All ZZP purchased injectors come with dielectric grease and are packaged in a reusable plastic case to store your factory injectors safely.
Specifications:
- Coil Resistance: 12.5 Ohms / High Impedance / High-Z (No ECM driver modifications required)
- Static Flow Rate @ 43.5PSI ( 300kPa ) w/Gas: 60 lb/hr = 630 cc/min = 453 g/min
- Static Flow Rate @ 87PSI ( 600kPa ) w/Gas: 85.7 lb/hr = 900 cc/min = 648 g/min
- Gain: 0.11ms/mg
- Offset: 0.055ms
- Turn on time @ 14VDC: 1.14ms
- Turn off time: 0.85ms @ 600KPa
- Series: DEKA 4 ( DEKA IV )
- Orifice Type: Multi-orifice
- Spray Pattern: 30 Degree Spray Cone
- Factory fitted with Viton upper and lower o-rings
