These will work great for E85 builds where huge fuel systems are required.
These are high impedance injectors so they are plug and play.
Slim design saves 276 grams total over 42# Lucas injectors.

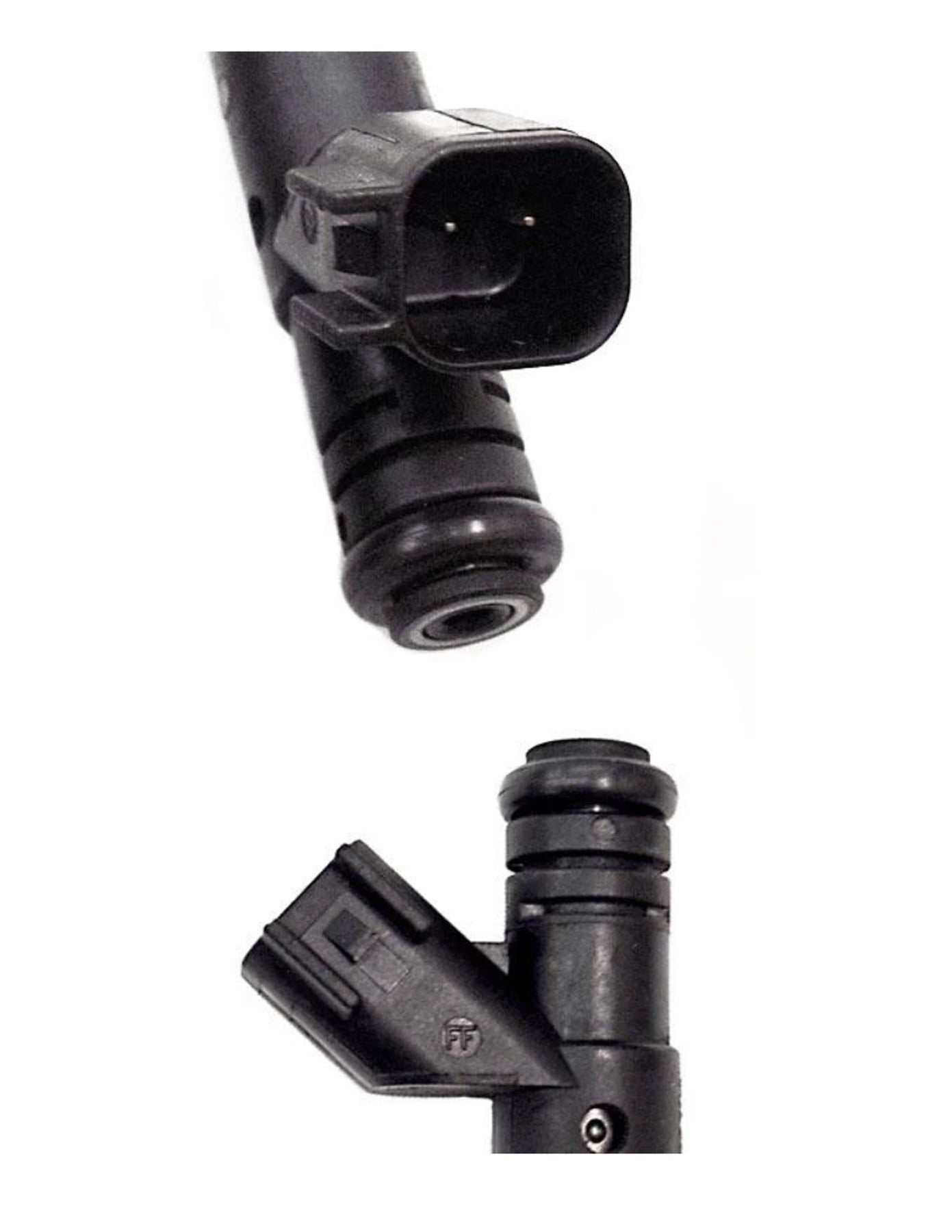

Injectors of this size require PCM programming on all applications. L67 cars will chose EV1 connectors, and L32 cars will chose the EV6 connectors. 2001+ NA cars require injector connectors or adapters.
All ZZP purchased injectors come with dielectric grease and are packaged in a reusable plastic case to store your factory injectors safely.
Coil Resistance: 14 Ohms / High Impedance / High-Z (No ECM driver modifications required).
Static Flow Rate @ 43.5PSI ( 300kPa ) w/Gas: 80 lb/hr = 630 cc/min = 850 cc/min.
Dynamic Flow Rate: 18.6 mg/pulse 2.5ms PW, 20 ms Period.

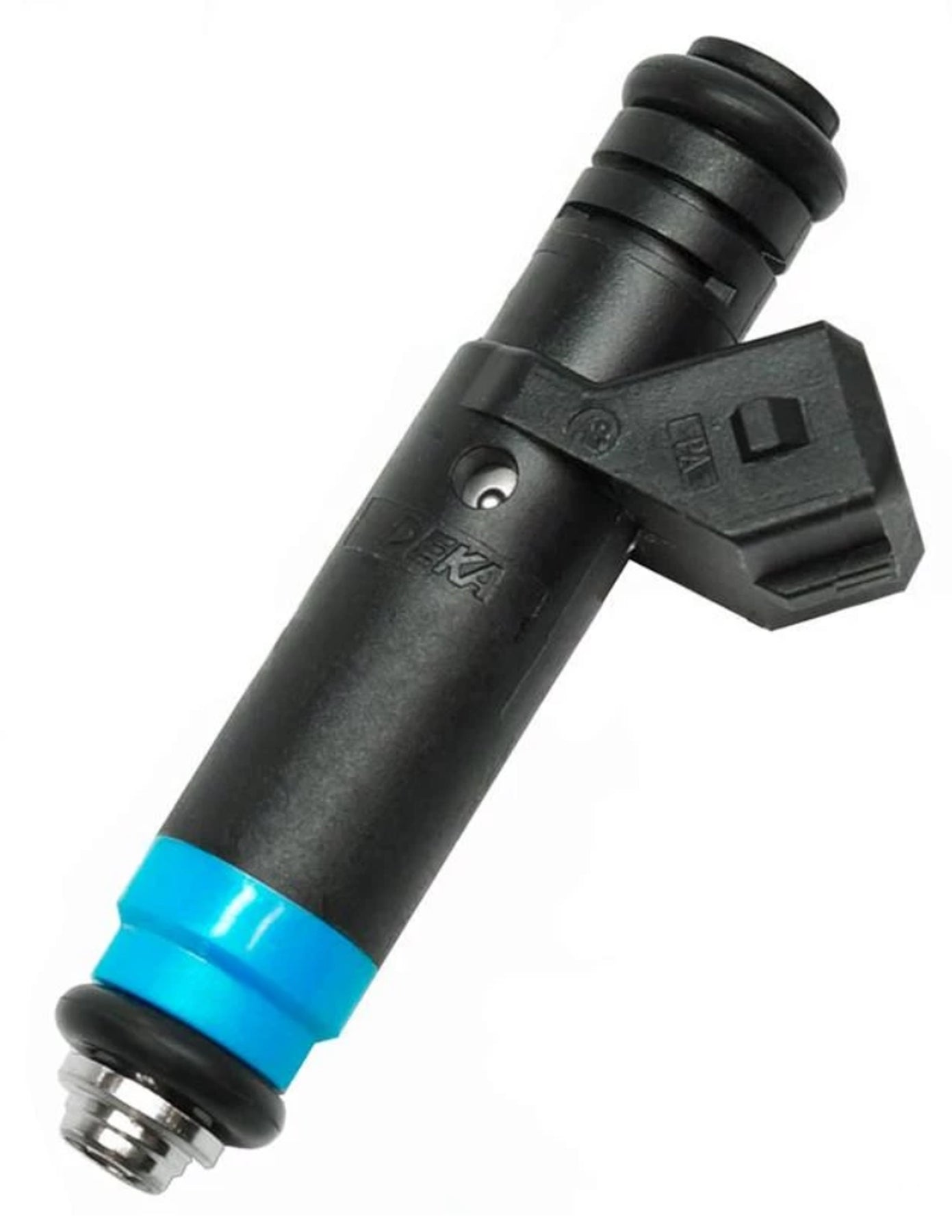

Series: DEKA 4 ( DEKA IV ).
Orifice Type: Multi-orifice.
Spray Pattern: 30 Degree Spray Cone.
Factory fitted with Viton upper and lower o-rings.
