ZZP Adjustable Sway Bar Links
Our ZZP adjustable sway bar links will be the perfect final touch for your suspension build. Often times when you lower a vehicle you change the angle of the sway bar due to new suspension geometry; not only can this have a negative effect on handling, but you can also sometimes run into clearance issues with various suspension components. Our adjustable end links are precision machined and fully sealed, meaning no more hassling with re-greasing your end links. All of our end links can adjust out 60mm from their smallest size meaning you can dial in your sway bar angle based on your specific setup and ride height.
These can also be a great upgrade over the flimsy thin metal or plastic sway bar links, even on stock suspension. Can also be used in many other custom applications and platforms outside of ZZP cars; just measure your stock end links and use the chart below to calculate what size you need. For reference the 140mm links have M10 studs, 210mm and 260mm use M12 studs.

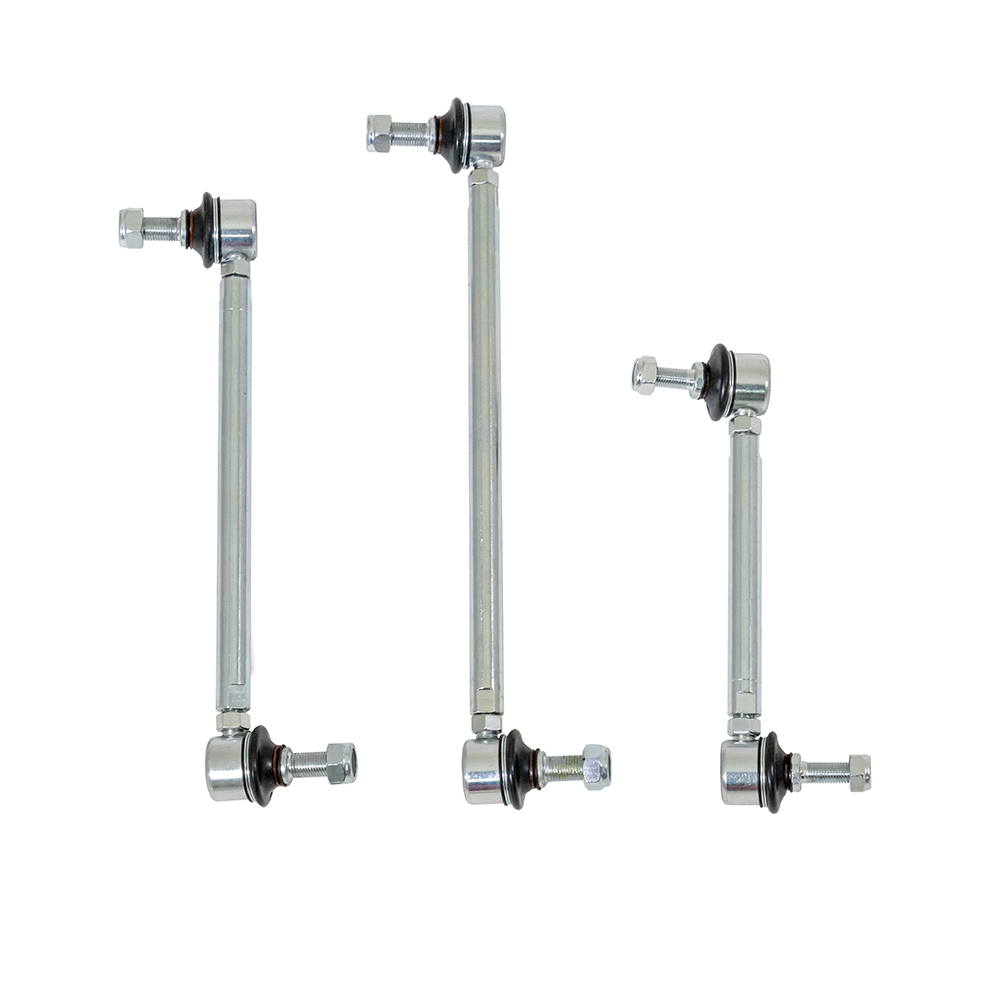

ZZP sway bar links are available in 3 sizes and are sold in pairs:
140mm: Minimum length 140mm (~5-1/2"), maximum length 200mm (~7-7/8")
210mm: Minimum length 210mm (~8-1/2"), maximum length 270mm (~10-5/8")
260mm: Minimum length 260mm (~10-1/4"), maximum length 320mm (~12-5/8")
Common sway bar link lengths:
-Cobalt/HHR 2.0L Front: 250mm/9.86" - We recommend our 210mm.
-Cobalt/HHR 2.2/2.4L Front: 300mm/11.8" - We recommend our 260mm. If lowered significantly you will want the 210mm.
-Ion 2.0/2.2L Front: 300mm/11.8" - We recommend our 260mm if on stock suspension, but 210mm if lowered.
-W-Body Rear: 180mm/7.08" - We recommend our 140mm. The stock holes on the sway bar and strut will not fit
-Sonic/Cruze Front: 300mm/11.8" - We recommend our 260mm if on stock suspension, but 210mm if lowered.
-2016+ Camaro Front: 245mm/9.65" - We recommend our 210mm.
-Cadillac ATS (including V) Front: 245mm/9.65" - We recommend our 210mm.
-Polaris Slingshot Front: 165mm/6.5" - We recommend our 140mm.
