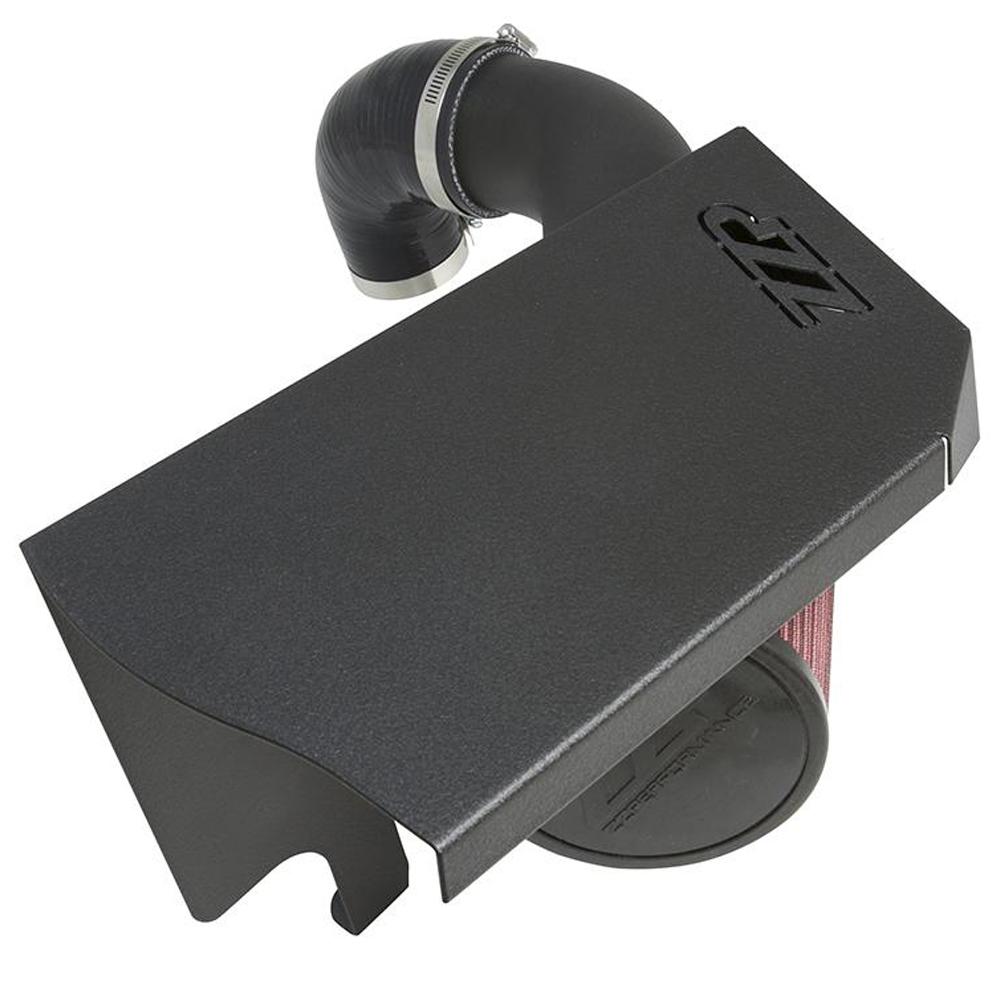

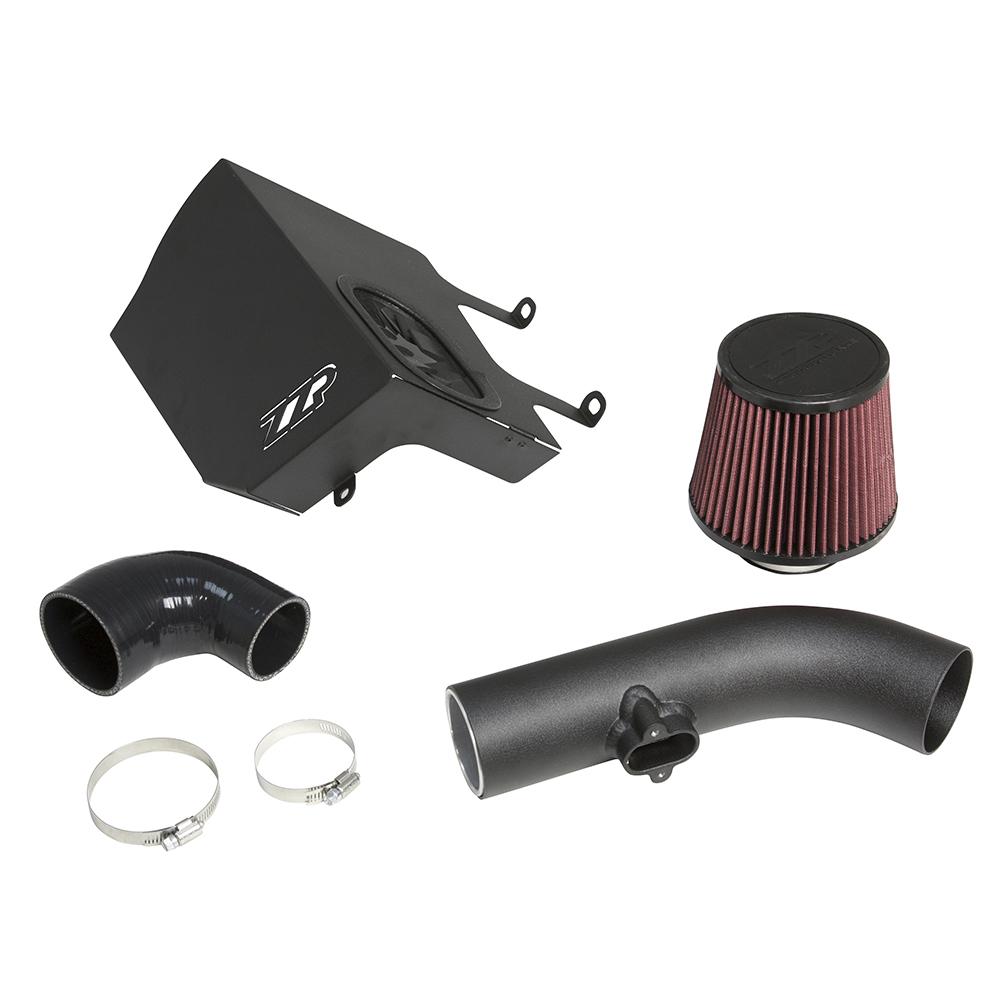

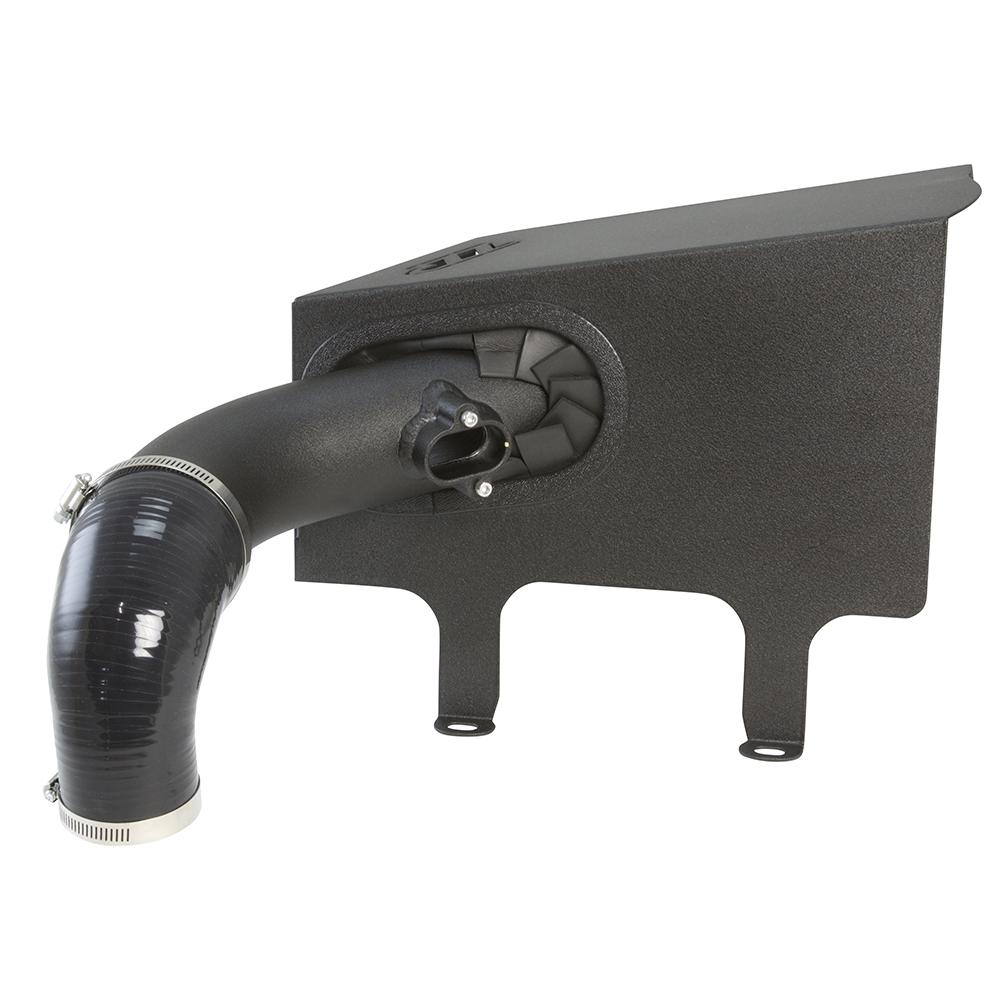

This is our revised 1.4L Cold Air Intake. It comes with everything pictured and it will replace your OEM air box with a complete replacement high flow unit. The sound from the bypass valve will be very noticeable with this intake. It will make about 12hp on the stock computer because it leans out the AFR and bumps the boost, but going from a tuned computer to the tuned computer with this intake it will give you about 5-6hp.
For builds in excess of 250whp, the insert can be removed to add more MAF frequency range for tuning.
Durable powder coat finish. Comes with everything needed to install and will take about 30 minutes to install.
Fits: Chevrolet Sonic 1.4T: 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020
THIS WILL NOT FIT ANY CHEVY CRUZE. WE HAVE A CRUZE INTAKE HERE.
CLICK HERE for Digital Install Instructions
How-To Install Video:
https://youtu.be/nFCXe10KjLc
Torque specs:
- Engine Mount Bolt (Qty: 1) 46 lb ft
- Engine Mount Nut (Qty: 2) 46 lb ft
- Engine Mount Bracket to Mount Bolt (Qty: 3) 37 lb ft + 60° to 75° - To torque using the torque-to-yield style torque spec of this bolt you would need to use a new bolt. We reuse the factory bolts when we reinstall the mount.
Want to hear what this sounds like?
Engine Bay Sound Clip:
In-car Sound Clip:
