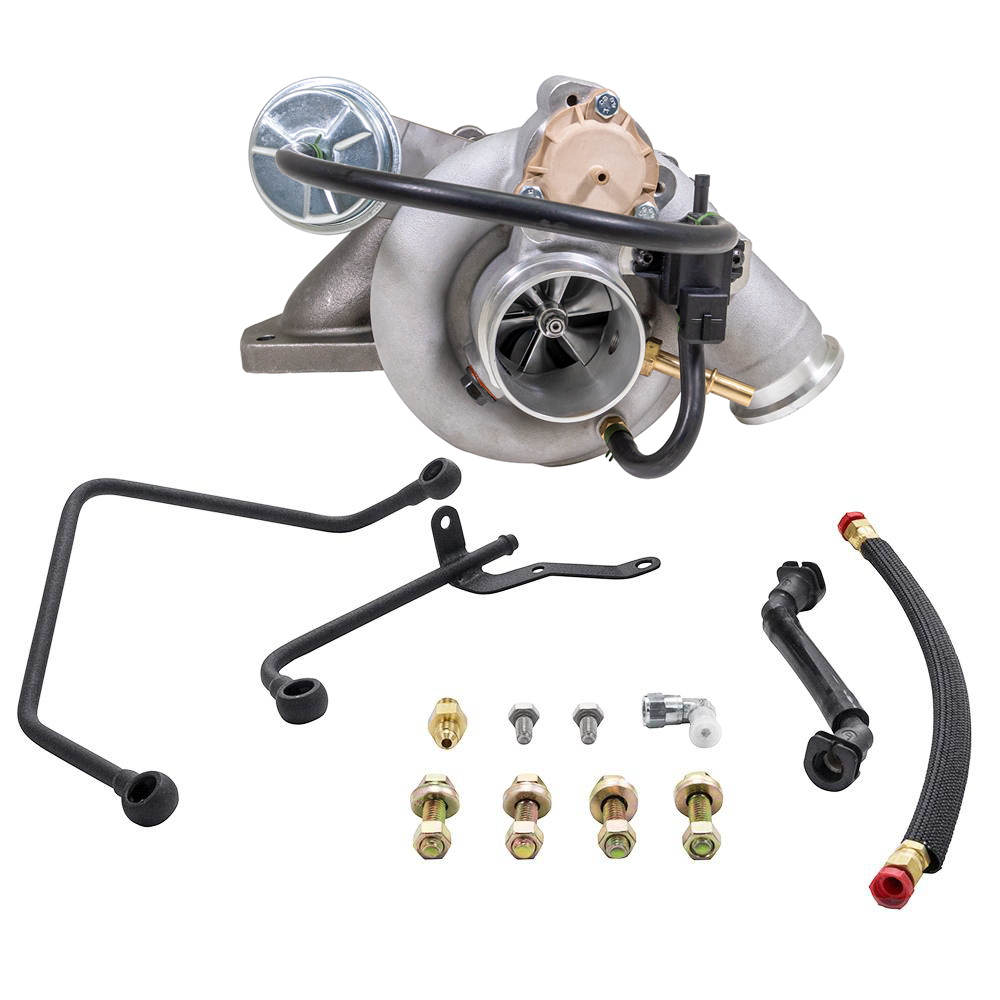

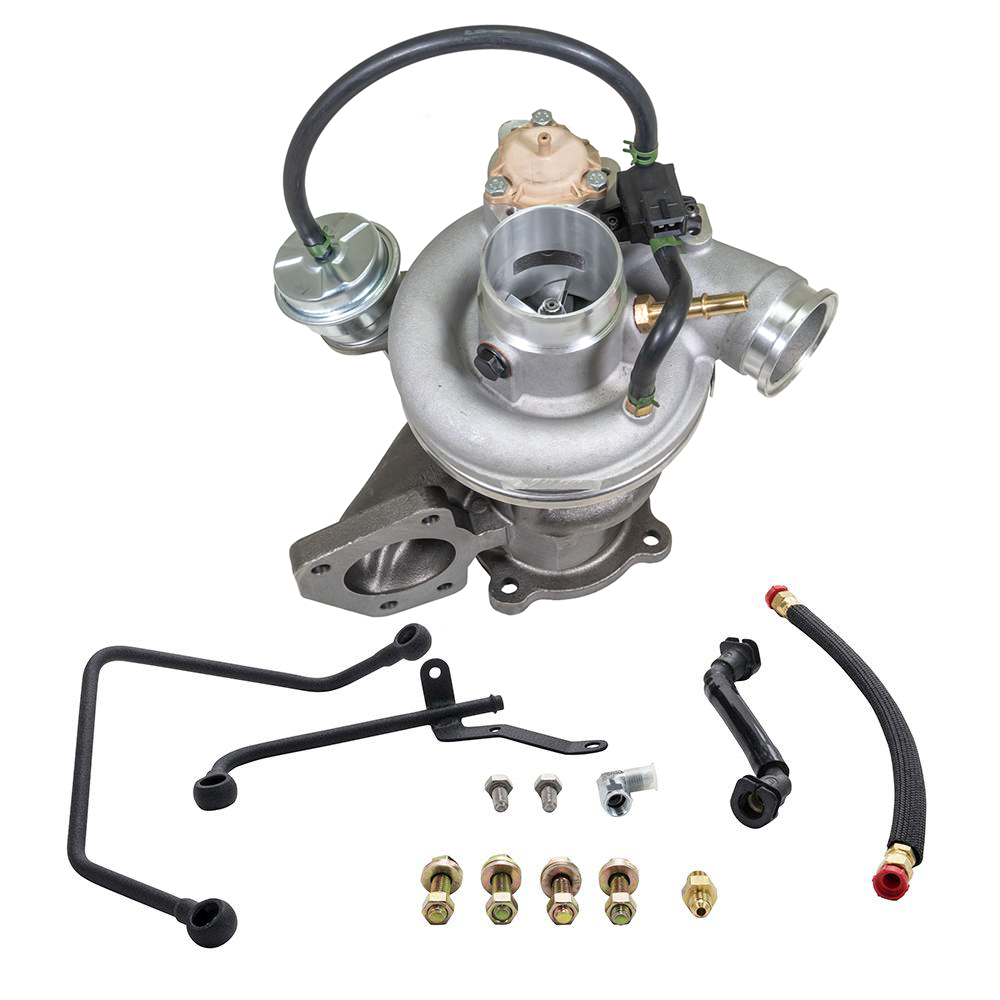

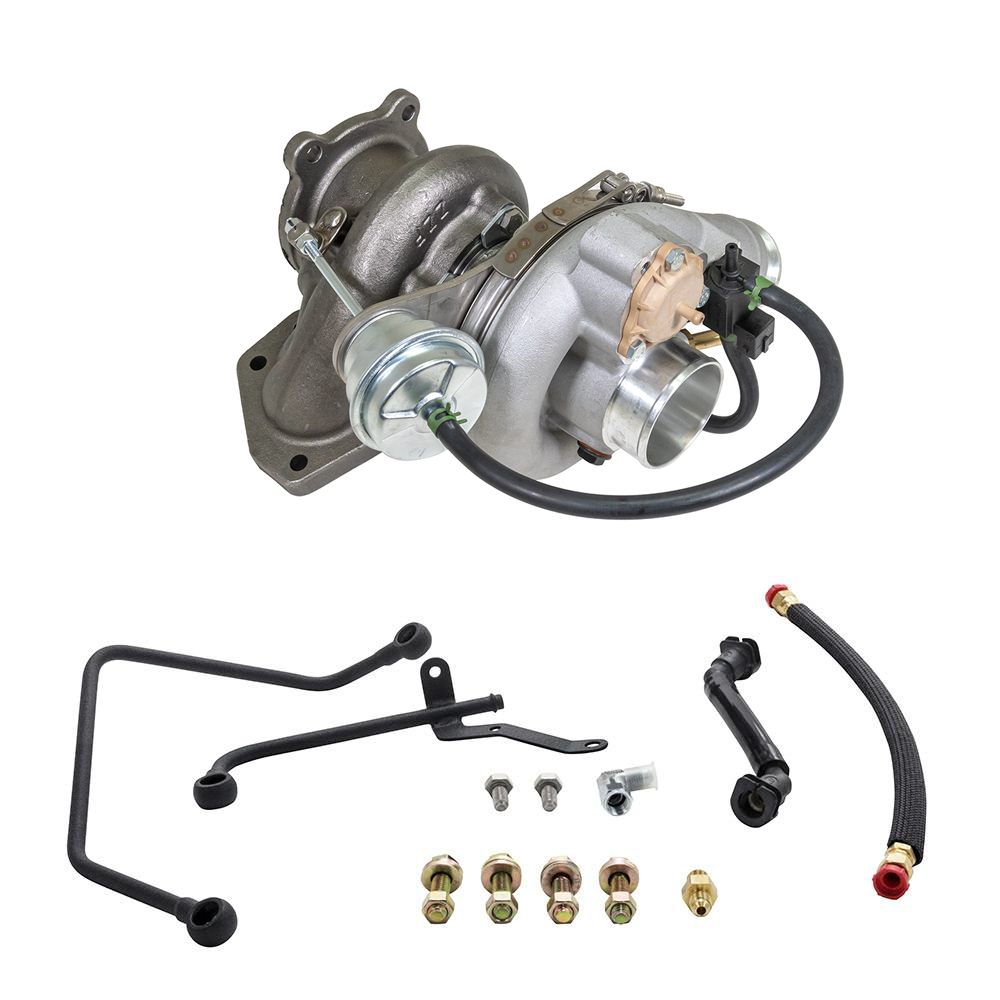

ZZP Z54 Turbo

ZZP Z54 Turbo
ZZP Z54 Turbo
ZZP Z54 Turbo

ZZP Z54 Turbo

13 reviews
Regular price $1,299.99
/
  • In stock, ready to ship
  • Inventory on the way

Since the release of our ZFR bolt on turbo for the Ecotec platform, it has been a very popular product. Our ZFR turbos offer an amazing combination of high horsepower potential with minimal turbo lag. However, the dual ball bearing system and titanium-aluminum alloy exhaust wheels add a considerable amount to the price of these turbos. For the last two years, we have been in development of a more affordable version of our ZFR 6758 turbo. So far the results have been very impressive. Our new journal bearing Z54 turbo has been tested to extreme power levels and it performs even better than most were expecting. With a full list of ZZP parts on our ’08 Cobalt SS, we achieved 480 wheel horsepower on E85.

Our Z54 turbo is designed to bolt in place of the factory K04 turbo on the LNF motor. It allows you to reuse your existing intake and exhaust parts without any adapters. While boost will still be controlled by your ECM, you will still need to have your tune set up for this turbo. The wastegate duty cycle chart is the main area that needs to be modified. Since this turbo is fully manufactured and marketed as a ZZP product, it also carries our standard 2 year warranty.

Specifications:

Compressor

Inlet size: 2.5”
Outlet size: 2”
Inducer: 54mm
Exducer: 67mm

Turbine

Inlet: K04
Outlet: K04
Inducer: 58mm
Exducer: 51mm



Note: Does not fit LNF 2.0L Saturn Sky Redline or Pontiac Solstice GXP. Kappa version of the Z54 is currently in development.

Customer Reviews
4.8 Based on 13 Reviews
5 ★
77%
10
4 ★
23%
3
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Customer Photos
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
  • turbo
  • user error
  • leak
  • quality
  • housing
  • something
  • reviews
  • care
  • coolant plugs
  • research
AL
03/31/2022
Andrew L.
United States

Quality control!

Only had a small issue with the kit. But if it hadnt been caught and corrected i couldve killed my engine. There was loctite or something clogging the barb for boost line. Other than that 5 star product im lovin it so far. Just please work on quality control.

TV
02/07/2022
Tyler V.
United States United States

Solid Turbo but had Install trouble

I’ve had the Z54 on for a few weeks now and it’s a great improvement over stock. Noticeably longer spool time than the K04 but that was to be expected and does not feel like a slow turbo. Power increase is great in the high rpms and the turbo sounds incredible. For the install, it took quite a bit of time. Having been the first time doing it and having only a general idea of what to expect, it proved to be a bit more difficult than anticipated. Getting off old bolts in tight spaces was not the easiest, but the new turbo went in pretty smoothly with another person helping up top. New gaskets and washers are not included with the turbo but should be replaced to ensure no leaks, so make sure you get those before install. Another note, the Injen hot side charge pipe does NOT work with this turbo and I was not aware prior. I had to order ZZP’s charge pipe to get everything put together. All and all, great turbo and no issues with it at all, but install took a lot longer than expected. Check for coolant line leaks and be sure to not kink your oil return line. Thanks ZZP!

ZZPerformance ZZP Z54 Turbo Review
KS
08/10/2021
Kevin S.
United States United States

Z54 is AMAZING

All I can say is if you are maxed out on the K04 and want something bigger without breaking the bank this is the turbo for you. Solid turbo. Turbines have been marked so I am assuming they have been properly balanced. Housing and turbines are of high quality, you will not be disappointed. Only issue I had was the coolant plugs developed a leak somehow but I took care of it but other than that I have been running it for 1k miles so far now but she still pulling like a ***** ape. Don't be scared of all the horror reviews. I did my research for years and come to find out that alot of the bad reviews are legit user error.

ZZPerformance ZZP Z54 Turbo ReviewZZPerformance ZZP Z54 Turbo ReviewZZPerformance ZZP Z54 Turbo ReviewZZPerformance ZZP Z54 Turbo Review
KS
08/10/2021
Kevin S.

Z54 is

All I can say is if you are maxed out on the K04 and want something bigger without breaking the bank this is the turbo for you. Solid turbo. Turbines have been marked so I am assuming they have been properly balanced. Housing and turbines are of high quality, you will not be disappointed. Only issue I had was the coolant plugs developed a leak somehow but I took care of it but other than that I have been running it for 1k miles so far now but she still pulling like a ***** ape. Don't be scared of all the horror reviews. I did my research for years and come to find out that alot of the bad reviews are legit user error. I am tired and my meds are kicking in but thank you so much ZZP for another A+++ product!

TH
01/21/2021
Tyler H.
United States United States

Great deal but had some issues

Install is rather straight forward but the long coolant line they supplied didn't fit probably and caused a leak. After reaching out to customer support and requesting a new one, they sent the incorrect coolant line. Third time is the charm and I got the right one. I'll be throwing it on soon then off to tune!

ZZPerformance ZZP Z54 Turbo ReviewZZPerformance ZZP Z54 Turbo Review
