2.2/2.4 9.5” Clutch Kit

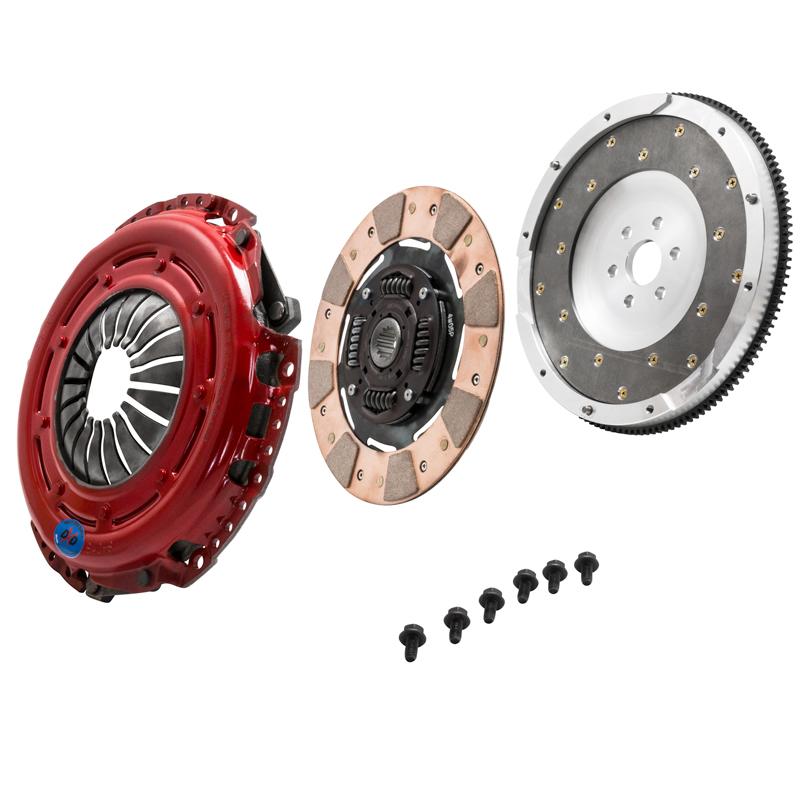

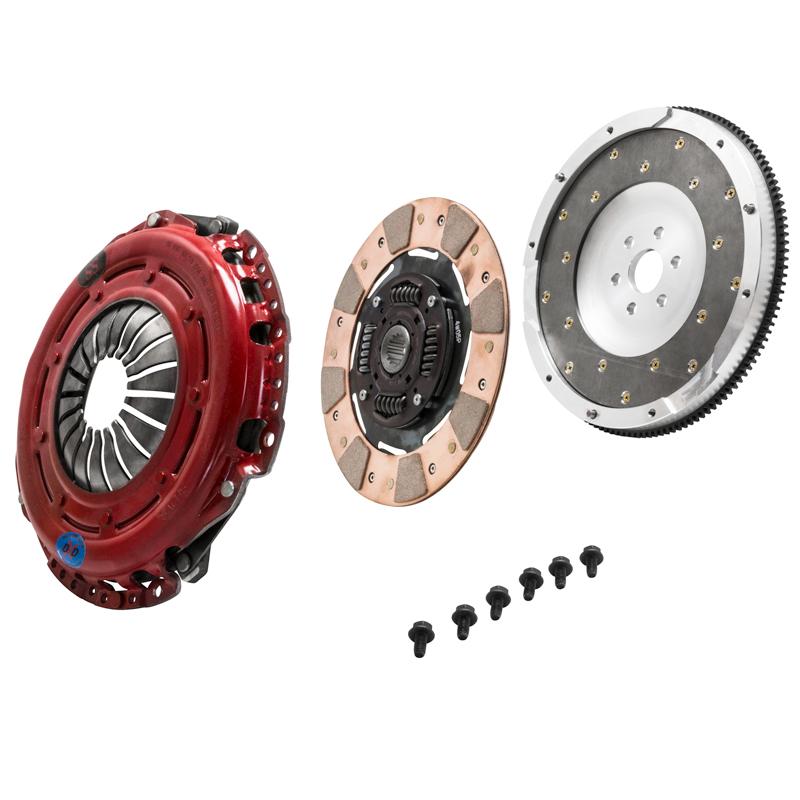

This is the absolute perfect clutch upgrade for your 2.2 or 2.4 liter. We start with a custom aluminum flywheel that has a bolt pattern for your 6 bolt crank and then it has a surface setup to use the larger 9.5" disc because the factory disc is only 9". Then we bolt on a higher capacity pressure plate to further increase the load capacity. While retaining the factory throw out bearing. This is not comparable to any other 2.2/2.4L clutch assembly. This is a complete bolt in assembly. You will not be reusing any of your factory clutch parts.
Stage 1 comes with a 1500# pressure plate and organic disc. (supports up to 280 ft lbs)
Stage 2 comes with a 1600# pressure plate and full face ceramic disc. (supports up to 330 ft lbs)
Stage 3 comes with a 2000# pressure plate and full face ceramic disc. (supports up to 400 ft lbs)
- Fidanza lightweight flywheel
- Larger 9.5" disc
- Increased clamp load pressure plate
- Pressure plate bolts
It will fit any F23/F35 transmission.
Torque Spec Flywheel to crank 39 ft lbs and 25 degrees. (OEM flywheel bolts)
Torque Spec Pressure plate to Flywheel is 22 ft lbs.
