Rebuilt M90 Snout

ZZ-M90SNT-G3-CORE $250.00
Model
Refundable Core Charge
Regular price $250.00

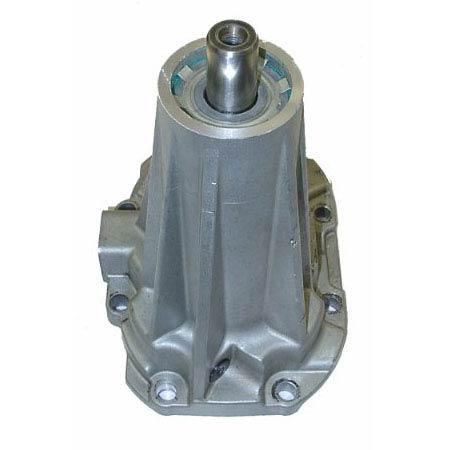

This is a Eaton M90 snout that has been rebuilt to OEM specs. We take used cores, completely disassemble/clean/sandblast them, repowdercoat, and reassemble with new bearings and a seal.

How to order your rebuilt snout:

Model:
This determines what generation supercharger you need the snout for. Gen3 is what comes on the '97-03 Grand Prix GTP, 97+ Regal, '04+ Impala/Monte SS, '97+ Bonneville SSEi, '96+ Park Ave Ultra/Riviera. The Gen5 only comes on the '04-07 supercharged Grand Prix models.

Core Charge:
This is a refundable core charge. This allows us to ship you a core first so you can swap it with the one on your car and then return your used one for the core charge amount. We offer an extra 10% back if you want it as an in store credit instead of refunding it the way it was paid.

Pulley or hub installed?:
This allows you to order it with a pulley/hub ready to bolt onto your car so you do not have to swap what is on your snount over to the new snout. We offer it with no pulley or hub, with a ZZP modular hub (requires a MPS pulley), or with 2 different press on pulleys.

Snout machining?:
This is for people that are running very small supercharger pulleys. For example if you are running our Modular Pulley System and you have enough mods to run a pulley smaller than a 2.8", then you will need to have the snout machined to clear the 2.7" or smaller pulley.

These are the rest of the items you would need to complete this snout swap:

Note:
A bad snout seal will cause supercharger oil to leak out from the end of the housing and then gets on the pulley, it then flings it all over your engine bay.
Bad snout bearings make a buzzing noise that increases with engine RPM and will get louder and louder until the SC comes apart.
A worn coupler will cause a rattling noise only at idle that will go away if you rev it.
A bad rotor pack also makes a rattling noise like in this video.
Click here to hear Rotor Rattle

Vehicle compatibility chart:

  • '97 - '03 Pontiac Grand Prix (Gen3)
  • '97 - '03 Buick Regal (Gen3)
  • '96 - '03 Pontiac Bonneville (Gen3)
  • 2004+ Supercharged Monte/Impala (Gen3)
  • 2004+ Grand Prix (Gen 5)
