LNF Turbo Upgrade

KIT0345 $4,124.99
Stage
Downpipe
Tuning
Regular price $4,124.99

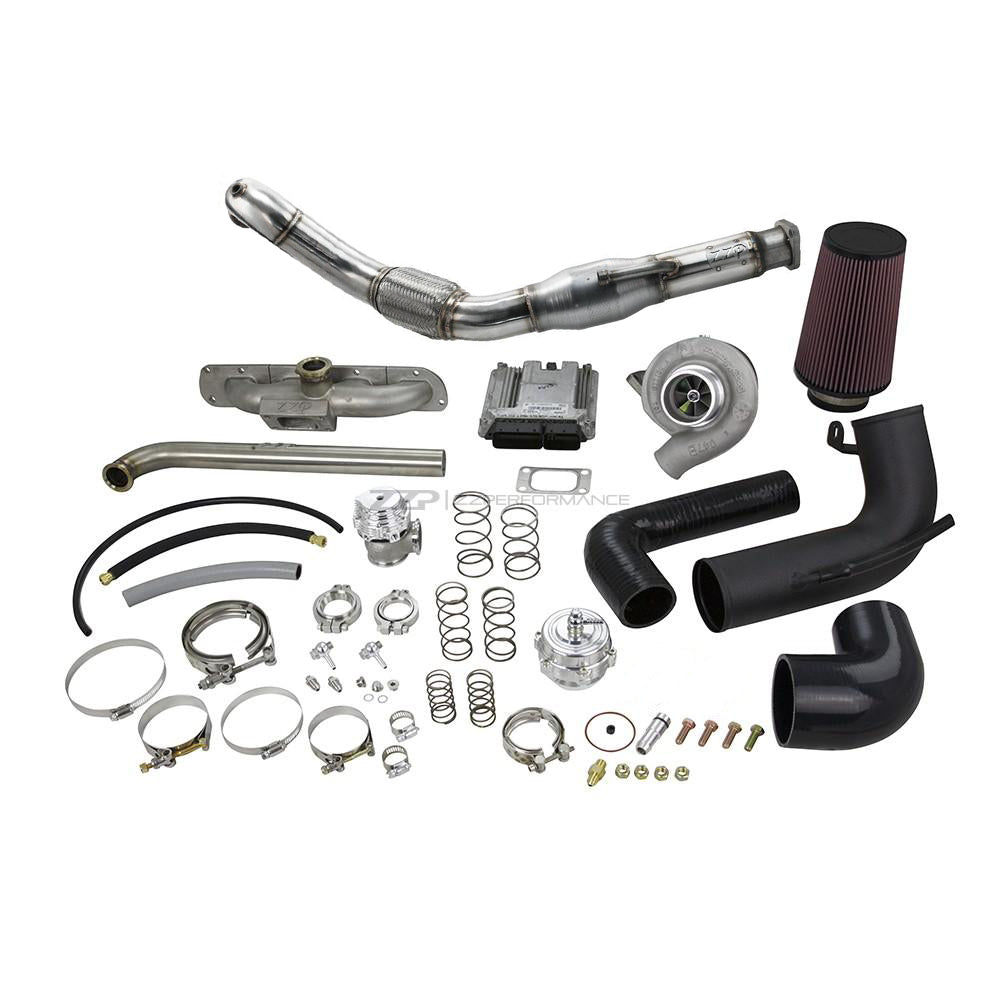

Stage 1 kit:

  • Borg Warner 257 Turbo
  • TiAl 38 mm Wastegate
  • ZZP Turbo Intake (black powder-coat finish)
  • K&N Air Filter
  • ZZP 304ss Exhaust Manifold
  • ZZP Stainless Downpipe
  • Oil feed and Drain Kits
  • Spark Plugs
  • All necessary hoses, fittings, bolts, and gaskets

Stage 2 kit adds:

  • Upper Charge Pipe
  • Lower Charge Pipe
  • MAF Relocation Kit
  • ZZP 50mm BOV

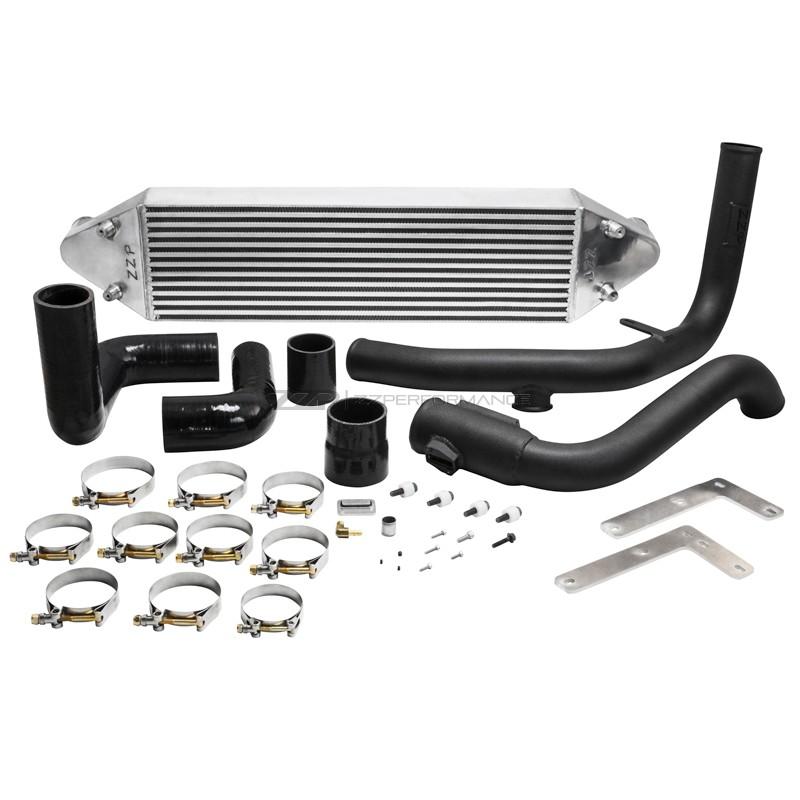

Stage 3 kit adds:

  • ZZP front mount intercooler

Vehicle: Cobalt SS or HHR SS Auto/Manual. A manual trans Cobalt/HHR will only have an ECU. However if you have an auto HHR, your car will have an ECU and TCU, so make sure to select the proper core charge option

Downpipe: You have two downpipe options, a high flow cat or an "off-road" catless one.

Exhaust option: External or Recirculated wastegate? External dump means that every time you achieve full boost the wastegate will dump the extra exhaust pressure to the atmosphere. This means when the car is at high load and full boost is achieved the car will get very loud. Recirculated wastegate dumps the extra exhaust pressure directly into your downpipe and the car is quieter at full throttle. The factory setup is also recirculated, it just uses an internal wastegate instead of our upgraded external unit.

Tuning option: Determine the boost control of the kit. 375-400 whp tune is a ZZP pcm with a manual boost controller, that turns the boost up or down with a knob and is (usually) mounted under the hood. This option requires you to either send in your PCM core first(preferred) or pay the refundable core charge.

If you select “I am doing my own tuning” then the kit will come without a PCM or a boost controller. With that option you do not need to pay the refundable core charge.





ZZPerformance has worked extensively with turbos on the Ecotec platform and after testing many turbos from Borg Warner, Bullseye, Garrett, and Precision; we concluded that nothing spooled as quickly, made as much power, or lasted as long as the turbos custom developed for ZZP by Bullseye Turbo Systems. We use their extended tip compressor wheels exclusively as these made more power and spooled quicker than their standard turbos. We get many requests to use customer’s turbos but we strongly recommend against this route. If you search the forums there is literally no one making big power with successful builds that run well other than people using ZZP setups. This includes our choice of turbos.


The 256ET (discontinued) turbo reaches full boost around 3500 RPM in the LNF. It reaches maximum efficiency between 20 and 25 PSI on the 2.0. It is normally run at 22psi on pump gas depending on the other mods you have. (We recommend 20psi for 91 octane, 22 for 93) It will make ~380 whp but is capable of up to 475 with additional mods to the vehicle and E85. The Gen 2 LNF block, rods and pistons are not reliable above the 380 whp mark so it’s best to address the engine if you plan on making more than that.


The Borg Warner 257SXE turbo is the newest to the lineup, it flows slightly more than the 259 turbo, but spools slightly slower than the 256 turbo. This is the turbo that we recommend with the kit.


The 259ET (discontinued) turbo reaches full boost around 3900 RPM on the LNF. It reaches maximum efficiency between 20 and 30 PSI on the 2.0. To run more than 22 psi, high octane fuel is required. E85 works well and builds using E85 can expect 450whp as a baseline. More can be had with additional mods. On pump gas 22 psi will make close to 400whp but it’s a waste of the turbo’s ability and a 256ET is a better pump gas choice. The LNF block, rods and pistons are not reliable above the 380whp mark so it’s best to address the engine if you plan on making more than that.


We have done custom builds with turbos larger than the 259. They require E85, E98, or C16 to take advantage of the boost levels. Firewall modification, custom 3.5” downpipe. The turbo won’t spool until ~4400 rpm making it a race only or dyno queen setup. Drivability is poor.


In the LNF, running E85 or above 450whp on pump gas; requires an intake cam with larger fuel lobe and Opel injectors. High HP builds will need to add our 5th injector. Maxing that we modify the in tank pump and change to boost reference fuel pressure.


If you intend on running more than 22 psi of boost with this kit we recommend purchasing the GMS1 sensors. The stock sensors are prone to blowing out at pressure above 25 psi and are only rated for 2.5 Bar





How a Cobalt with the ZZP kit stacks against a GTR and modified Vette, click here.




Stage 1 kit:

  • Borg Warner 257 Turbo
  • TiAl 38 mm Wastegate
  • ZZP Turbo Intake (black powder-coat finish)
  • K&N Air Filter
  • ZZP 304ss Exhaust Manifold
  • ZZP Stainless Downpipe
  • Oil feed and Drain Kits
  • Spark Plugs
  • All necessary hoses, fittings, bolts, and gaskets

Stage 2 kit adds:

  • Upper Charge Pipe
  • Lower Charge Pipe
  • MAF Relocation Kit
  • ZZP 50mm BOV

Stage 3 kit adds:

  • ZZP front mount intercooler

Vehicle: Cobalt SS or HHR SS Auto/Manual. A manual trans Cobalt/HHR will only have an ECU. However if you have an auto HHR, your car will have an ECU and TCU, so make sure to select the proper core charge option

Downpipe: You have two downpipe options, a high flow cat or an "off-road" catless one.

Exhaust option: External or Recirculated wastegate? External dump means that every time you achieve full boost the wastegate will dump the extra exhaust pressure to the atmosphere. This means when the car is at high load and full boost is achieved the car will get very loud. Recirculated wastegate dumps the extra exhaust pressure directly into your downpipe and the car is quieter at full throttle. The factory setup is also recirculated, it just uses an internal wastegate instead of our upgraded external unit.

Tuning option: Determine the boost control of the kit. 375-400 whp tune is a ZZP pcm with a manual boost controller, that turns the boost up or down with a knob and is (usually) mounted under the hood. This option requires you to either send in your PCM core first(preferred) or pay the refundable core charge.

If you select “I am doing my own tuning” then the kit will come without a PCM or a boost controller. With that option you do not need to pay the refundable core charge.





ZZPerformance has worked extensively with turbos on the Ecotec platform and after testing many turbos from Borg Warner, Bullseye, Garrett, and Precision; we concluded that nothing spooled as quickly, made as much power, or lasted as long as the turbos custom developed for ZZP by Bullseye Turbo Systems. We use their extended tip compressor wheels exclusively as these made more power and spooled quicker than their standard turbos. We get many requests to use customer’s turbos but we strongly recommend against this route. If you search the forums there is literally no one making big power with successful builds that run well other than people using ZZP setups. This includes our choice of turbos.


The 256ET (discontinued) turbo reaches full boost around 3500 RPM in the LNF. It reaches maximum efficiency between 20 and 25 PSI on the 2.0. It is normally run at 22psi on pump gas depending on the other mods you have. (We recommend 20psi for 91 octane, 22 for 93) It will make ~380 whp but is capable of up to 475 with additional mods to the vehicle and E85. The Gen 2 LNF block, rods and pistons are not reliable above the 380 whp mark so it’s best to address the engine if you plan on making more than that.


The Borg Warner 257SXE turbo is the newest to the lineup, it flows slightly more than the 259 turbo, but spools slightly slower than the 256 turbo. This is the turbo that we recommend with the kit.


The 259ET (discontinued) turbo reaches full boost around 3900 RPM on the LNF. It reaches maximum efficiency between 20 and 30 PSI on the 2.0. To run more than 22 psi, high octane fuel is required. E85 works well and builds using E85 can expect 450whp as a baseline. More can be had with additional mods. On pump gas 22 psi will make close to 400whp but it’s a waste of the turbo’s ability and a 256ET is a better pump gas choice. The LNF block, rods and pistons are not reliable above the 380whp mark so it’s best to address the engine if you plan on making more than that.


We have done custom builds with turbos larger than the 259. They require E85, E98, or C16 to take advantage of the boost levels. Firewall modification, custom 3.5” downpipe. The turbo won’t spool until ~4400 rpm making it a race only or dyno queen setup. Drivability is poor.


In the LNF, running E85 or above 450whp on pump gas; requires an intake cam with larger fuel lobe and Opel injectors. High HP builds will need to add our 5th injector. Maxing that we modify the in tank pump and change to boost reference fuel pressure.


If you intend on running more than 22 psi of boost with this kit we recommend purchasing the GMS1 sensors. The stock sensors are prone to blowing out at pressure above 25 psi and are only rated for 2.5 Bar





How a Cobalt with the ZZP kit stacks against a GTR and modified Vette, click here.
